DashedVMobject

Qualified name: manim.mobject.types.vectorized\_mobject.DashedVMobject

class DashedVMobject(vmobject, num_dashes=15, dashed_ratio=0.5, dash_offset=0, color='#FFFFFF', equal_lengths=True, **kwargs)

Bases: VMobject

A VMobject composed of dashes instead of lines.

Parameters

• vmobject – The object that will get dashed

• num_dashes – Number of dashes to add.

• dashed_ratio – Ratio of dash to empty space.

• dash_offset – Shifts the starting point of dashes along the path. Value 1 shifts by one full dash length.

• equal_lengths – If True, dashes will be (approximately) equally long. If False, dashes will be split evenly in the curve’s input t variable (legacy behavior).

Examples

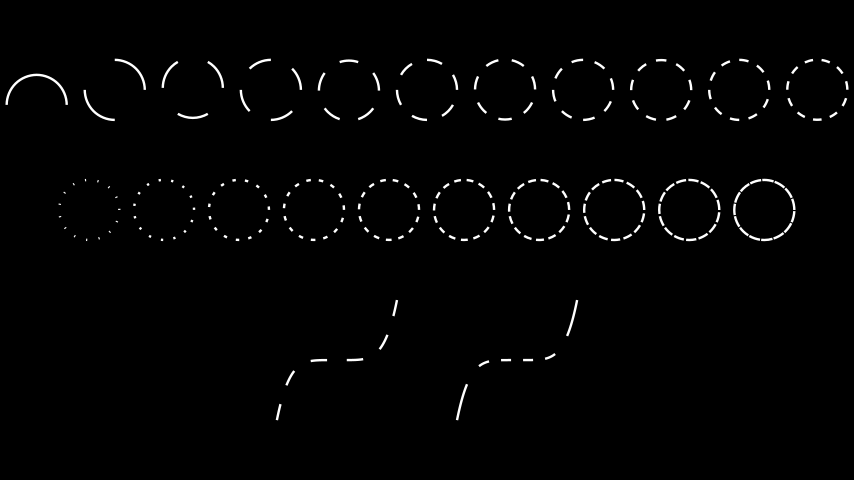

Example: DashedVMobjectExample

from manim import *

class DashedVMobjectExample(Scene):
    def construct(self):
        r = 0.5

        top_row = VGroup()  # Increasing num_dashes
        for dashes in range(1, 12):
            circ = DashedVMobject(Circle(radius=r, color=WHITE), num_dashes=dashes)
            top_row.add(circ)

        middle_row = VGroup()  # Increasing dashed_ratio
        for ratio in np.arange(1 / 11, 1, 1 / 11):
            circ = DashedVMobject(
                Circle(radius=r, color=WHITE), dashed_ratio=ratio
            )
            middle_row.add(circ)

        func1 = FunctionGraph(lambda t: t**5,[-1,1],color=WHITE)
        func_even = DashedVMobject(func1,num_dashes=6,equal_lengths=True)
        func_stretched = DashedVMobject(func1, num_dashes=6, equal_lengths=False)
        bottom_row = VGroup(func_even,func_stretched)

        top_row.arrange(buff=0.3)
        middle_row.arrange()
        bottom_row.arrange(buff=1)
        everything = VGroup(top_row, middle_row, bottom_row).arrange(DOWN, buff=1)
        self.add(everything)

Methods

Attributes

animate	Used to animate the application of any method of self.
animation_overrides
color
depth	The depth of the mobject.
fill_color	If there are multiple colors (for gradient) this returns the first one
height	The height of the mobject.
n_points_per_curve
sheen_factor
stroke_color
width	The width of the mobject.
