MathTex

Qualified name: manim.mobject.text.tex\_mobject.MathTex

class MathTex(*tex_strings, arg_separator=' ', substrings_to_isolate=None, tex_to_color_map=None, tex_environment='align*', **kwargs)

Bases: SingleStringMathTex

A string compiled with LaTeX in math mode.

Examples

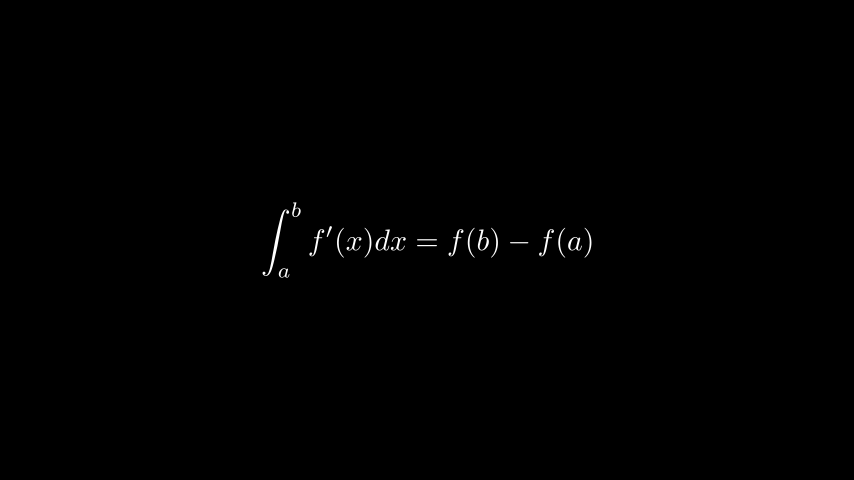

Example: Formula

from manim import *

class Formula(Scene):
    def construct(self):
        t = MathTex(r"\int_a^b f'(x) dx = f(b)- f(a)")
        self.add(t)

Tests

Check that creating a MathTex works:

>>> MathTex('a^2 + b^2 = c^2')
MathTex('a^2 + b^2 = c^2')

Check that double brace group splitting works correctly:

>>> t1 = MathTex('{{ a }} + {{ b }} = {{ c }}')
>>> len(t1.submobjects)
5
>>> t2 = MathTex(r"\frac{1}{a+b\sqrt{2}}")
>>> len(t2.submobjects)
1

Methods

get_part_by_tex
get_parts_by_tex
index_of_part
index_of_part_by_tex
set_color_by_tex
set_color_by_tex_to_color_map
set_opacity_by_tex	Sets the opacity of the tex specified.
sort_alphabetically

Attributes

animate	Used to animate the application of any method of self.
animation_overrides
color
depth	The depth of the mobject.
fill_color	If there are multiple colors (for gradient) this returns the first one
font_size	The font size of the tex mobject.
hash_seed	A unique hash representing the result of the generated mobject points.
height	The height of the mobject.
n_points_per_curve
sheen_factor
stroke_color
width	The width of the mobject.

Parameters

• arg_separator (str) –

• substrings_to_isolate (Iterable[str] | None) –

• tex_to_color_map (dict[str, Color]) –

• tex_environment (str) –

set_opacity_by_tex(tex, opacity=0.5, remaining_opacity=None, **kwargs)

Sets the opacity of the tex specified. If ‘remaining_opacity’ is specified, then the remaining tex will be set to that opacity.

Parameters

• tex (str) – The tex to set the opacity of.

• opacity (float) – Default 0.5. The opacity to set the tex to

• remaining_opacity (Optional[float]) – Default None. The opacity to set the remaining tex to. If None, then the remaining tex will not be changed
