MobjectMatrix#

Qualified name: manim.mobject.matrix.MobjectMatrix

class MobjectMatrix(matrix, element_to_mobject=<function MobjectMatrix.<lambda>>, **kwargs)[source]#

Bases: Matrix

A mobject that displays a matrix of mobject entries on the screen.

Examples

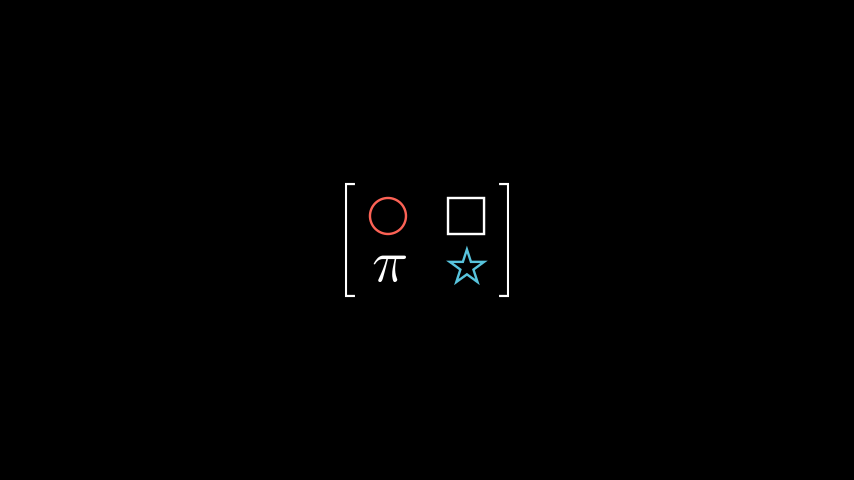

Example: MobjectMatrixExample ¶

from manim import *

class MobjectMatrixExample(Scene):
    def construct(self):
        a = Circle().scale(0.3)
        b = Square().scale(0.3)
        c = MathTex("\pi").scale(2)
        d = Star().scale(0.3)
        m0 = MobjectMatrix([[a, b], [c, d]])
        self.add(m0)

Parameters

matrix – A numpy 2d array or list of lists.
v_buff – Vertical distance between elements, by default 0.8.
h_buff – Horizontal distance between elements, by default 1.3.
bracket_h_buff – Distance of the brackets from the matrix, by default MED_SMALL_BUFF.
bracket_v_buff – Height of the brackets, by default MED_SMALL_BUFF.
add_background_rectangles_to_entries – True if should add backgraound rectangles to entries, by default False.
include_background_rectangle – True if should include background rectangle, by default False.
element_to_mobject – The mobject class used to construct the elements, by default MathTex.
element_to_mobject_config – Additional arguments to be passed to the constructor in element_to_mobject, by default {}.
element_alignment_corner – The corner to which elements are aligned, by default DR.
left_bracket – The left bracket type, by default "[".
right_bracket – The right bracket type, by default "]".
stretch_brackets – True if should stretch the brackets to fit the height of matrix contents, by default True.
bracket_config – Additional arguments to be passed to MathTex when constructing the brackets.

Methods

Attributes

`animate`	Used to animate the application of any method of `self`.
`animation_overrides`
`color`
`depth`	The depth of the mobject.
`fill_color`	If there are multiple colors (for gradient) this returns the first one
`height`	The height of the mobject.
`n_points_per_curve`
`sheen_factor`
`stroke_color`
`width`	The width of the mobject.
