Torus

Qualified name: manim.mobject.three\_d.three\_dimensions.Torus

class Torus(major_radius=3, minor_radius=1, u_range=(0, 6.283185307179586), v_range=(0, 6.283185307179586), resolution=None, **kwargs)

Bases: Surface

A torus.

Parameters

• major_radius (float) – Distance from the center of the tube to the center of the torus.

• minor_radius (float) – Radius of the tube.

• u_range (Sequence[float]) – The range of the u variable: (u_min, u_max).

• v_range (Sequence[float]) – The range of the v variable: (v_min, v_max).

• resolution (Sequence[int]) – The number of samples taken of the Torus. A tuple can be used to define different resolutions for u and v respectively.

Examples

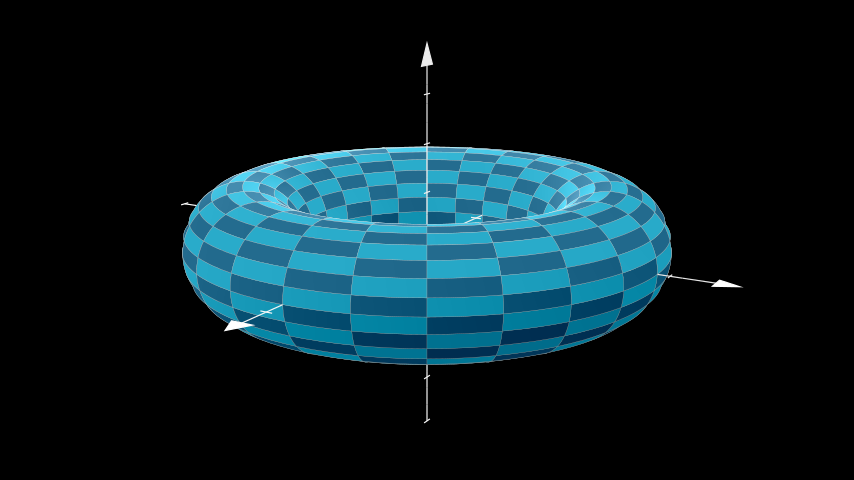

Example: ExampleTorus

from manim import *

class ExampleTorus(ThreeDScene):
    def construct(self):
        axes = ThreeDAxes()
        torus = Torus()
        self.set_camera_orientation(phi=75 * DEGREES, theta=30 * DEGREES)
        self.add(axes, torus)

Methods

func	The z values defining the Torus being plotted.

Attributes

animate	Used to animate the application of any method of self.
animation_overrides
color
depth	The depth of the mobject.
fill_color	If there are multiple colors (for gradient) this returns the first one
height	The height of the mobject.
n_points_per_curve
sheen_factor
stroke_color
width	The width of the mobject.

func(u, v)

The z values defining the Torus being plotted.

Returns

The z values defining the Torus.

Return type

numpy.ndarray

Parameters

• u (float) –

• v (float) –
