Rectangle#

Qualified name: manim.mobject.geometry.polygram.Rectangle

class Rectangle(color='#FFFFFF', height=2.0, width=4.0, grid_xstep=None, grid_ystep=None, mark_paths_closed=True, close_new_points=True, **kwargs)[source]#

Bases: Polygon

A quadrilateral with two sets of parallel sides.

Parameters

color (Color) – The color of the rectangle.
height (float) – The vertical height of the rectangle.
width (float) – The horizontal width of the rectangle.
grid_xstep (float | None) – Space between vertical grid lines.
grid_ystep (float | None) – Space between horizontal grid lines.
mark_paths_closed (bool) – No purpose.
close_new_points (bool) – No purpose.
kwargs – Additional arguments to be passed to Polygon

Examples

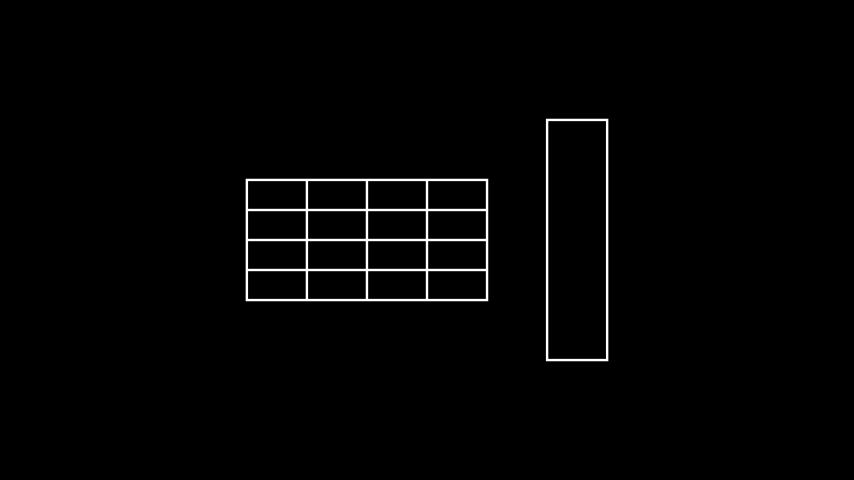

Example: RectangleExample ¶

from manim import *

class RectangleExample(Scene):
    def construct(self):
        rect1 = Rectangle(width=4.0, height=2.0, grid_xstep=1.0, grid_ystep=0.5)
        rect2 = Rectangle(width=1.0, height=4.0)

        rects = Group(rect1,rect2).arrange(buff=1)
        self.add(rects)

Methods

Attributes

`animate`	Used to animate the application of any method of `self`.
`animation_overrides`
`color`
`depth`	The depth of the mobject.
`fill_color`	If there are multiple colors (for gradient) this returns the first one
`height`	The height of the mobject.
`n_points_per_curve`
`sheen_factor`
`stroke_color`
`width`	The width of the mobject.
