Square#

Qualified name: manim.mobject.geometry.polygram.Square

class Square(side_length=2.0, **kwargs)[source]#

Bases: Rectangle

A rectangle with equal side lengths.

Parameters

side_length (float) – The length of the sides of the square.
kwargs – Additional arguments to be passed to Rectangle.

Examples

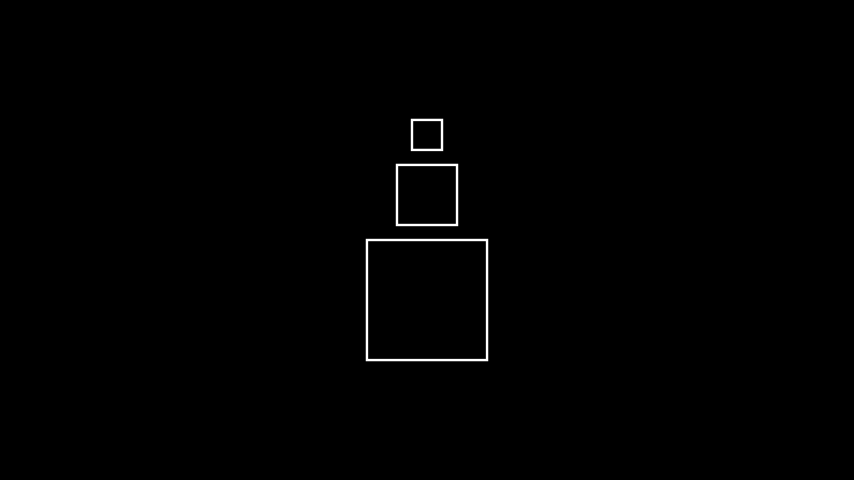

Example: SquareExample ¶

from manim import *

class SquareExample(Scene):
    def construct(self):
        square_1 = Square(side_length=2.0).shift(DOWN)
        square_2 = Square(side_length=1.0).next_to(square_1, direction=UP)
        square_3 = Square(side_length=0.5).next_to(square_2, direction=UP)
        self.add(square_1, square_2, square_3)

Methods

Attributes

`animate`	Used to animate the application of any method of `self`.
`animation_overrides`
`color`
`depth`	The depth of the mobject.
`fill_color`	If there are multiple colors (for gradient) this returns the first one
`height`	The height of the mobject.
`n_points_per_curve`
`sheen_factor`
`stroke_color`
`width`	The width of the mobject.
