Matrix

Qualified name: manim.mobject.matrix.Matrix

class Matrix(matrix, v_buff=0.8, h_buff=1.3, bracket_h_buff=0.25, bracket_v_buff=0.25, add_background_rectangles_to_entries=False, include_background_rectangle=False, element_to_mobject=<class 'manim.mobject.text.tex_mobject.MathTex'>, element_to_mobject_config={}, element_alignment_corner=array([ 1., -1., 0.]), left_bracket='[', right_bracket=']', stretch_brackets=True, bracket_config={}, **kwargs)

Bases: VMobject

A mobject that displays a matrix on the screen.

Examples

The first example shows a variety of uses of this module while the second example exlpains the use of the options add_background_rectangles_to_entries and include_background_rectangle.

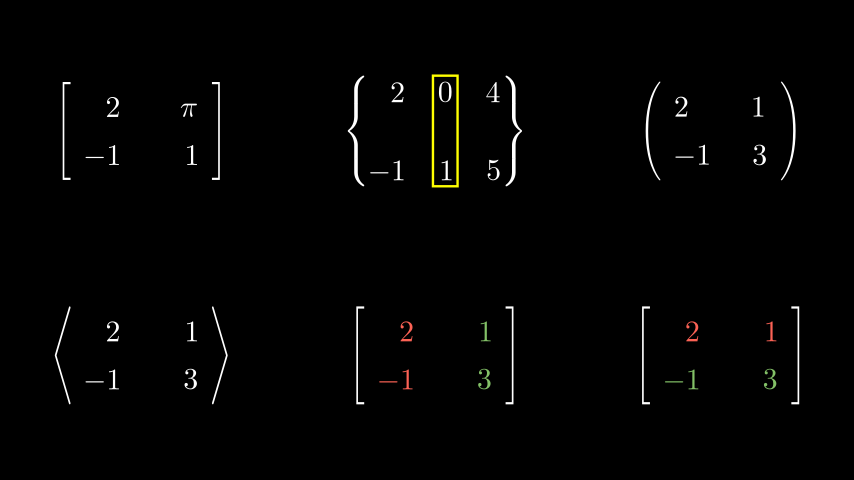

Example: MatrixExamples

from manim import *

class MatrixExamples(Scene):
    def construct(self):
        m0 = Matrix([[2, "\pi"], [-1, 1]])
        m1 = Matrix([[2, 0, 4], [-1, 1, 5]],
            v_buff=1.3,
            h_buff=0.8,
            bracket_h_buff=SMALL_BUFF,
            bracket_v_buff=SMALL_BUFF,
            left_bracket="\{",
            right_bracket="\}")
        m1.add(SurroundingRectangle(m1.get_columns()[1]))
        m2 = Matrix([[2, 1], [-1, 3]],
            element_alignment_corner=UL,
            left_bracket="(",
            right_bracket=")")
        m3 = Matrix([[2, 1], [-1, 3]],
            left_bracket="\\langle",
            right_bracket="\\rangle")
        m4 = Matrix([[2, 1], [-1, 3]],
        ).set_column_colors(RED, GREEN)
        m5 = Matrix([[2, 1], [-1, 3]],
        ).set_row_colors(RED, GREEN)
        g = Group(
            m0,m1,m2,m3,m4,m5
        ).arrange_in_grid(buff=2)
        self.add(g)

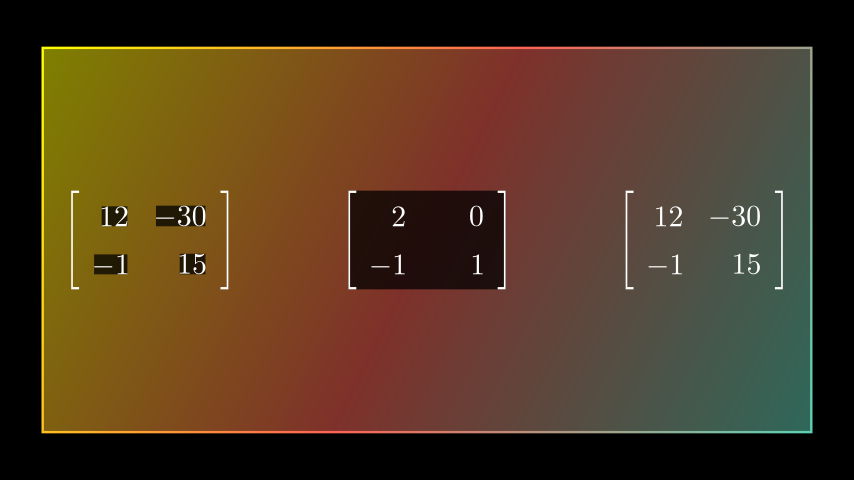

Example: BackgroundRectanglesExample

from manim import *

class BackgroundRectanglesExample(Scene):
    def construct(self):
        background= Rectangle().scale(3.2)
        background.set_fill(opacity=.5)
        background.set_color([TEAL, RED, YELLOW])
        self.add(background)
        m0 = Matrix([[12, -30], [-1, 15]],
            add_background_rectangles_to_entries=True)
        m1 = Matrix([[2, 0], [-1, 1]],
            include_background_rectangle=True)
        m2 = Matrix([[12, -30], [-1, 15]])
        g = Group(m0, m1, m2).arrange(buff=2)
        self.add(g)

Parameters

• matrix (Iterable) – A numpy 2d array or list of lists.

• v_buff (float) – Vertical distance between elements, by default 0.8.

• h_buff (float) – Horizontal distance between elements, by default 1.3.

• bracket_h_buff (float) – Distance of the brackets from the matrix, by default MED_SMALL_BUFF.

• bracket_v_buff (float) – Height of the brackets, by default MED_SMALL_BUFF.

• add_background_rectangles_to_entries (bool) – True if should add backgraound rectangles to entries, by default False.

• include_background_rectangle (bool) – True if should include background rectangle, by default False.

• element_to_mobject (type[MathTex]) – The mobject class used to construct the elements, by default MathTex.

• element_to_mobject_config (dict) – Additional arguments to be passed to the constructor in element_to_mobject, by default {}.

• element_alignment_corner (Sequence[float]) – The corner to which elements are aligned, by default DR.

• left_bracket (str) – The left bracket type, by default "[".

• right_bracket (str) – The right bracket type, by default "]".

• stretch_brackets (bool) – True if should stretch the brackets to fit the height of matrix contents, by default True.

• bracket_config (dict) – Additional arguments to be passed to MathTex when constructing the brackets.

Methods

add_background_to_entries	Add a black background rectangle to the matrix, see above for an example.
get_brackets	Return the bracket mobjects.
get_columns	Return columns of the matrix as VGroups.
get_entries	Return the individual entries of the matrix.
get_mob_matrix	Return the underlying mob matrix mobjects.
get_rows	Return rows of the matrix as VGroups.
set_column_colors	Set individual colors for each columns of the matrix.
set_row_colors	Set individual colors for each row of the matrix.

Attributes

animate	Used to animate the application of any method of self.
animation_overrides
color
depth	The depth of the mobject.
fill_color	If there are multiple colors (for gradient) this returns the first one
height	The height of the mobject.
n_points_per_curve
sheen_factor
stroke_color
width	The width of the mobject.

add_background_to_entries()

Add a black background rectangle to the matrix, see above for an example.

Returns

The current matrix object (self).

Return type

Matrix

get_brackets()

Return the bracket mobjects.

Returns

Each VGroup contains a bracket

Return type

List[VGroup]

Examples

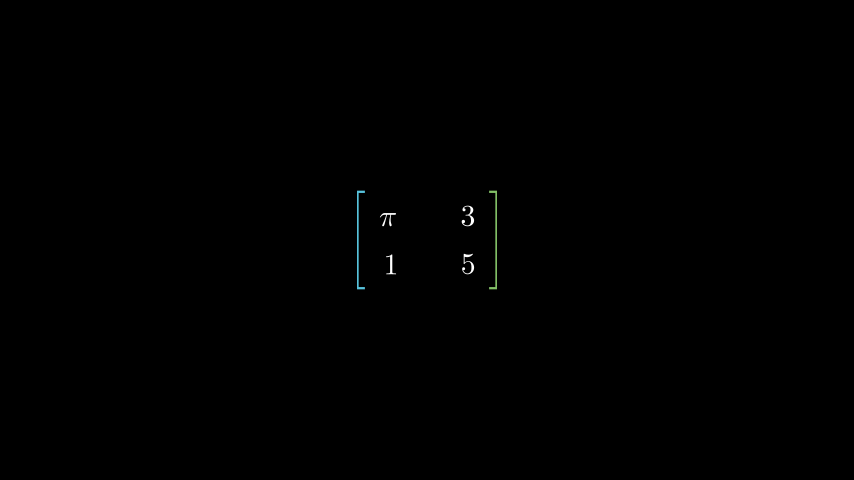

Example: GetBracketsExample

from manim import *

class GetBracketsExample(Scene):
    def construct(self):
        m0 = Matrix([["\pi", 3], [1, 5]])
        bra = m0.get_brackets()
        colors = [BLUE, GREEN]
        for k in range(len(colors)):
            bra[k].set_color(colors[k])
        self.add(m0)

get_columns()

Return columns of the matrix as VGroups.

Returns

Each VGroup contains a column of the matrix.

Return type

List[VGroup]

Examples

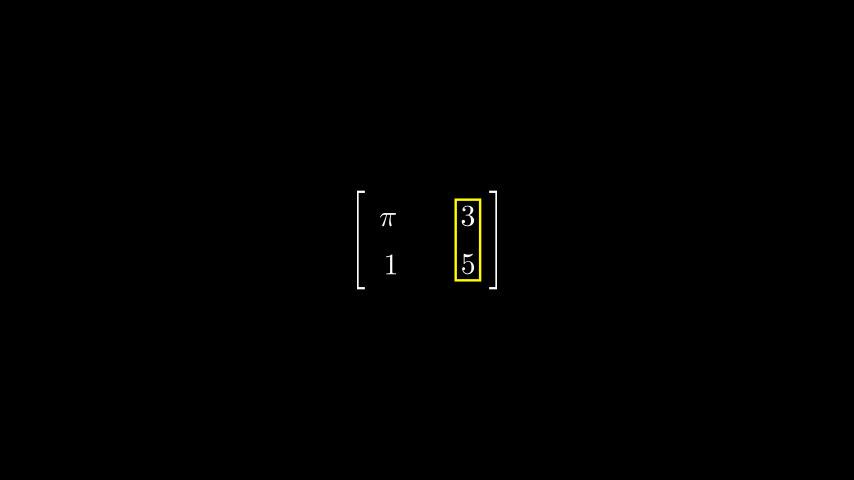

Example: GetColumnsExample

from manim import *

class GetColumnsExample(Scene):
    def construct(self):
        m0 = Matrix([["\pi", 3], [1, 5]])
        m0.add(SurroundingRectangle(m0.get_columns()[1]))
        self.add(m0)

get_entries()

Return the individual entries of the matrix.

Returns

VGroup containing entries of the matrix.

Return type

VGroup

Examples

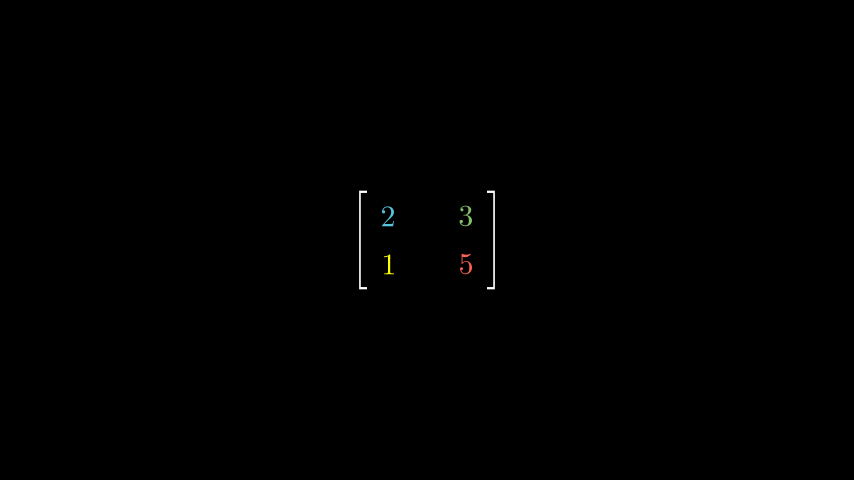

Example: GetEntriesExample

from manim import *

class GetEntriesExample(Scene):
    def construct(self):
        m0 = Matrix([[2, 3], [1, 5]])
        ent = m0.get_entries()
        colors = [BLUE, GREEN, YELLOW, RED]
        for k in range(len(colors)):
            ent[k].set_color(colors[k])
        self.add(m0)

get_mob_matrix()

Return the underlying mob matrix mobjects.

Returns

Each VGroup contains a row of the matrix.

Return type

List[VGroup]

get_rows()

Return rows of the matrix as VGroups.

Returns

Each VGroup contains a row of the matrix.

Return type

List[VGroup]

Examples

Example: GetRowsExample

from manim import *

class GetRowsExample(Scene):
    def construct(self):
        m0 = Matrix([["\pi", 3], [1, 5]])
        m0.add(SurroundingRectangle(m0.get_rows()[1]))
        self.add(m0)

set_column_colors(*colors)

Set individual colors for each columns of the matrix.

Parameters

colors (str) – The list of colors; each color specified corresponds to a column.

Returns

The current matrix object (self).

Return type

Matrix

Examples

Example: SetColumnColorsExample

from manim import *

class SetColumnColorsExample(Scene):
    def construct(self):
        m0 = Matrix([["\pi", 1], [-1, 3]],
        ).set_column_colors([RED,BLUE], GREEN)
        self.add(m0)

set_row_colors(*colors)

Set individual colors for each row of the matrix.

Parameters

colors (str) – The list of colors; each color specified corresponds to a row.

Returns

The current matrix object (self).

Return type

Matrix

Examples

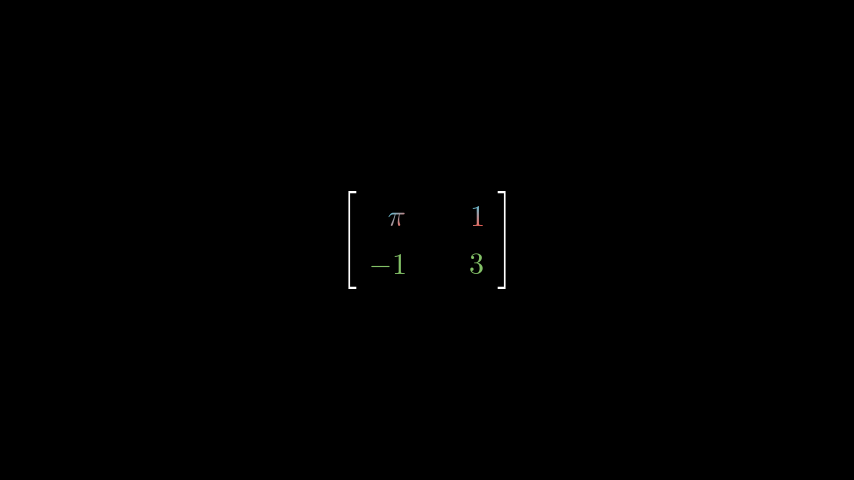

Example: SetRowColorsExample

from manim import *

class SetRowColorsExample(Scene):
    def construct(self):
        m0 = Matrix([["\pi", 1], [-1, 3]],
        ).set_row_colors([RED,BLUE], GREEN)
        self.add(m0)
