RegularPolygon

Qualified name: manim.mobject.geometry.polygram.RegularPolygon

class RegularPolygon(n=6, **kwargs)

Bases: RegularPolygram

An n-sided regular Polygon.

Parameters

• n (int) – The number of sides of the RegularPolygon.

• kwargs – Forwarded to the parent constructor.

Examples

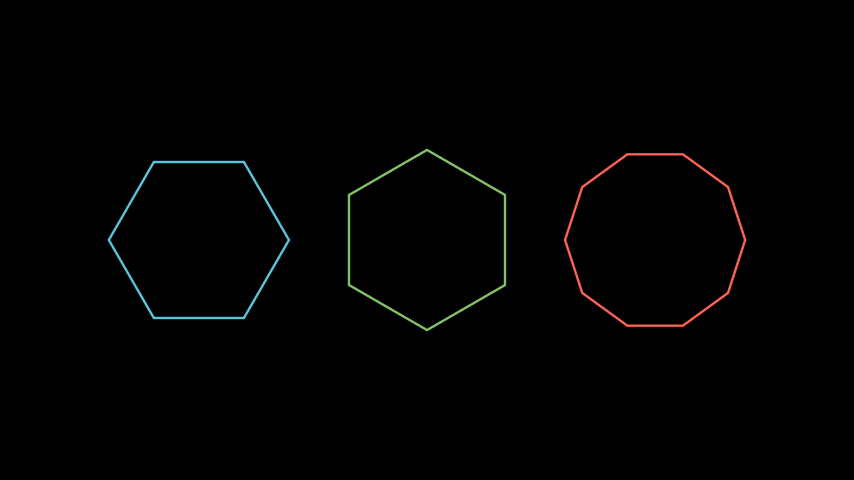

Example: RegularPolygonExample

from manim import *

class RegularPolygonExample(Scene):
    def construct(self):
        poly_1 = RegularPolygon(n=6)
        poly_2 = RegularPolygon(n=6, start_angle=30*DEGREES, color=GREEN)
        poly_3 = RegularPolygon(n=10, color=RED)

        poly_group = Group(poly_1, poly_2, poly_3).scale(1.5).arrange(buff=1)
        self.add(poly_group)

Methods

Attributes

animate	Used to animate the application of any method of self.
animation_overrides
color
depth	The depth of the mobject.
fill_color	If there are multiple colors (for gradient) this returns the first one
height	The height of the mobject.
n_points_per_curve
sheen_factor
stroke_color
width	The width of the mobject.
