DecimalTable

Qualified name: manim.mobject.table.DecimalTable

class DecimalTable(table, element_to_mobject=<class 'manim.mobject.text.numbers.DecimalNumber'>, element_to_mobject_config={'num_decimal_places': 1}, **kwargs)

Bases: Table

A specialized Table mobject for use with DecimalNumber to display decimal entries.

Examples

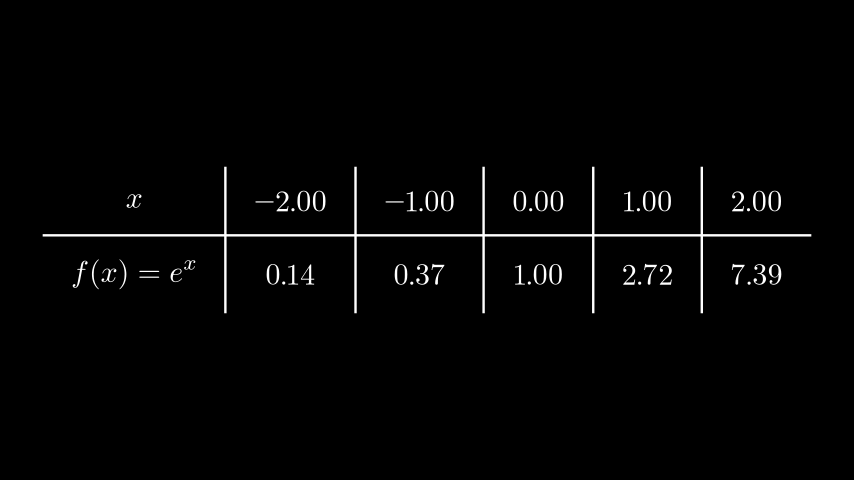

Example: DecimalTableExample

from manim import *

class DecimalTableExample(Scene):
    def construct(self):
        x_vals = [-2,-1,0,1,2]
        y_vals = np.exp(x_vals)
        t0 = DecimalTable(
            [x_vals, y_vals],
            row_labels=[MathTex("x"), MathTex("f(x)=e^{x}")],
            h_buff=1,
            element_to_mobject_config={"num_decimal_places": 2})
        self.add(t0)

Special case of Table with element_to_mobject set to DecimalNumber. By default, num_decimal_places is set to 1. Will round/truncate the decimal places based on the provided element_to_mobject_config.

Parameters

• table (Iterable[Iterable[float | str]]) – A 2D array, or a list of lists. Content of the table must be valid input for DecimalNumber.

• element_to_mobject (Callable[[float | str], VMobject]) – The Mobject class applied to the table entries. Set as DecimalNumber.

• element_to_mobject_config (dict) – Element to mobject config, here set as {“num_decimal_places”: 1}.

• kwargs – Additional arguments to be passed to Table.

Methods

Attributes

animate	Used to animate the application of any method of self.
animation_overrides
color
depth	The depth of the mobject.
fill_color	If there are multiple colors (for gradient) this returns the first one
height	The height of the mobject.
n_points_per_curve
sheen_factor
stroke_color
width	The width of the mobject.
