Circle

Qualified name: manim.mobject.geometry.arc.Circle

class Circle(radius=None, color='#FC6255', **kwargs)

Bases: Arc

A circle.

Parameters

• color (Color | str) – The color of the shape.

• kwargs – Additional arguments to be passed to Arc

• radius (float | None) –

Examples

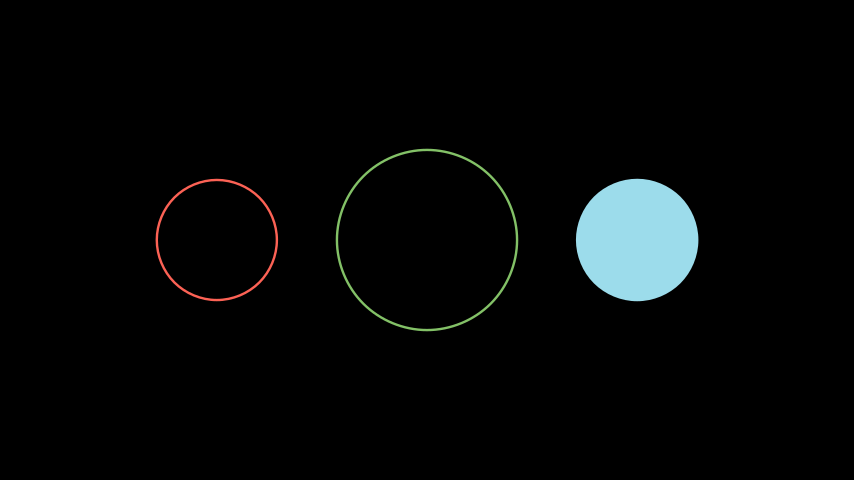

Example: CircleExample

from manim import *

class CircleExample(Scene):
    def construct(self):
        circle_1 = Circle(radius=1.0)
        circle_2 = Circle(radius=1.5, color=GREEN)
        circle_3 = Circle(radius=1.0, color=BLUE_B, fill_opacity=1)

        circle_group = Group(circle_1, circle_2, circle_3).arrange(buff=1)
        self.add(circle_group)

Methods

from_three_points	Returns a circle passing through the specified three points.
point_at_angle	Returns the position of a point on the circle.
surround	Modifies a circle so that it surrounds a given mobject.

Attributes

animate	Used to animate the application of any method of self.
animation_overrides
color
depth	The depth of the mobject.
fill_color	If there are multiple colors (for gradient) this returns the first one
height	The height of the mobject.
n_points_per_curve
sheen_factor
stroke_color
width	The width of the mobject.

static from_three_points(p1, p2, p3, **kwargs)

Returns a circle passing through the specified three points.

Example

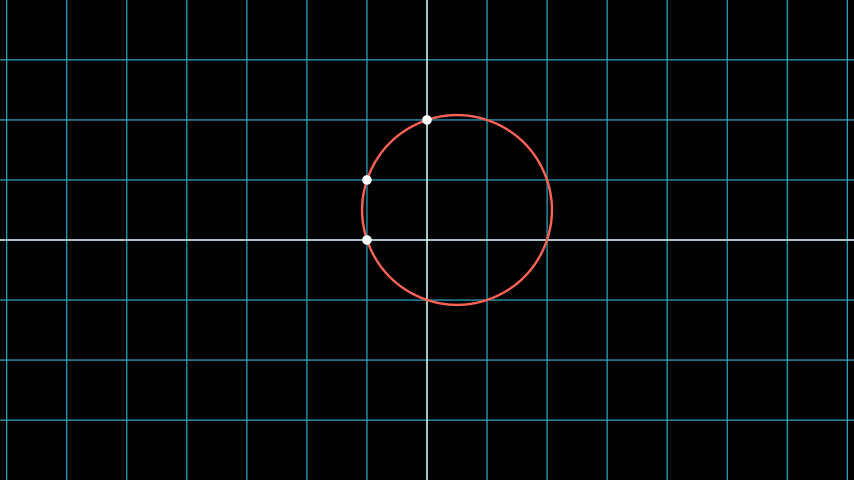

Example: CircleFromPointsExample

from manim import *

class CircleFromPointsExample(Scene):
    def construct(self):
        circle = Circle.from_three_points(LEFT, LEFT + UP, UP * 2, color=RED)
        dots = VGroup(
            Dot(LEFT),
            Dot(LEFT + UP),
            Dot(UP * 2),
        )
        self.add(NumberPlane(), circle, dots)

Parameters

• p1 (Sequence[float]) –

• p2 (Sequence[float]) –

• p3 (Sequence[float]) –

point_at_angle(angle)

Returns the position of a point on the circle.

Parameters

angle (float) – The angle of the point along the circle in radians.

Returns

The location of the point along the circle’s circumference.

Return type

numpy.ndarray

Examples

Example: PointAtAngleExample

from manim import *

class PointAtAngleExample(Scene):
    def construct(self):
        circle = Circle(radius=2.0)
        p1 = circle.point_at_angle(PI/2)
        p2 = circle.point_at_angle(270*DEGREES)

        s1 = Square(side_length=0.25).move_to(p1)
        s2 = Square(side_length=0.25).move_to(p2)
        self.add(circle, s1, s2)

surround(mobject, dim_to_match=0, stretch=False, buffer_factor=1.2)

Modifies a circle so that it surrounds a given mobject.

Parameters

• mobject (Mobject) – The mobject that the circle will be surrounding.

• dim_to_match (int) –

• buffer_factor (float) – Scales the circle with respect to the mobject. A buffer_factor < 1 makes the circle smaller than the mobject.

• stretch (bool) – Stretches the circle to fit more tightly around the mobject. Note: Does not work with Line

Examples

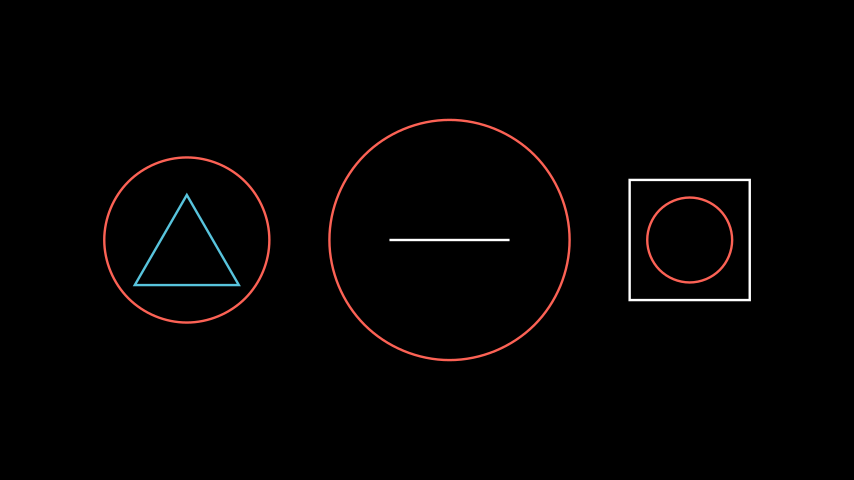

Example: CircleSurround

from manim import *

class CircleSurround(Scene):
    def construct(self):
        triangle1 = Triangle()
        circle1 = Circle().surround(triangle1)
        group1 = Group(triangle1,circle1) # treat the two mobjects as one

        line2 = Line()
        circle2 = Circle().surround(line2, buffer_factor=2.0)
        group2 = Group(line2,circle2)

        # buffer_factor < 1, so the circle is smaller than the square
        square3 = Square()
        circle3 = Circle().surround(square3, buffer_factor=0.5)
        group3 = Group(square3, circle3)

        group = Group(group1, group2, group3).arrange(buff=1)
        self.add(group)
