Prism#

Qualified name: manim.mobject.three\_d.three\_dimensions.Prism

class Prism(dimensions=[3, 2, 1], **kwargs)[source]#

Bases: Cube

A right rectangular prism (or rectangular cuboid). Defined by the length of each side in [x, y, z] format.

Parameters: dimensions (Sequence[int]) – Dimensions of the Prism in [x, y, z] format.

Examples

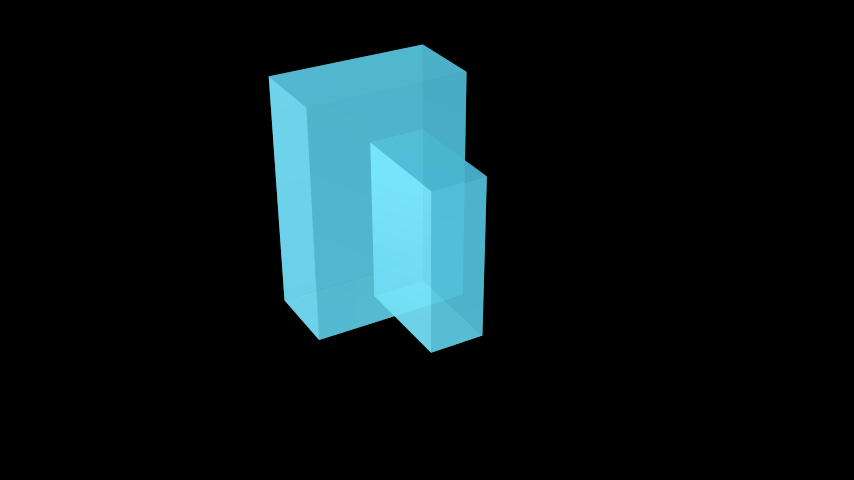

Example: ExamplePrism ¶

from manim import *

class ExamplePrism(ThreeDScene):
    def construct(self):
        self.set_camera_orientation(phi=60 * DEGREES, theta=150 * DEGREES)
        prismSmall = Prism(dimensions=[1, 2, 3]).rotate(PI / 2)
        prismLarge = Prism(dimensions=[1.5, 3, 4.5]).move_to([2, 0, 0])
        self.add(prismSmall, prismLarge)

Methods

generate_points

Creates the sides of the Prism.

Attributes

`animate`	Used to animate the application of any method of `self`.
`animation_overrides`
`color`
`depth`	The depth of the mobject.
`fill_color`	If there are multiple colors (for gradient) this returns the first one
`height`	The height of the mobject.
`n_points_per_curve`
`sheen_factor`
`stroke_color`
`width`	The width of the mobject.

generate_points()[source]#

Creates the sides of the Prism.

Return type: None
