ThreeDAxes#

Qualified name: manim.mobject.graphing.coordinate\_systems.ThreeDAxes

class ThreeDAxes(x_range=(- 6, 6, 1), y_range=(- 5, 5, 1), z_range=(- 4, 4, 1), x_length=10.5, y_length=10.5, z_length=6.5, z_axis_config=None, z_normal=array([0., - 1., 0.]), num_axis_pieces=20, light_source=array([- 7., - 9., 10.]), depth=None, gloss=0.5, **kwargs)[source]#

Bases: Axes

A 3-dimensional set of axes.

Parameters

x_range (Sequence[float] | None) – The [x_min, x_max, x_step] values of the x-axis.
y_range (Sequence[float] | None) – The [y_min, y_max, y_step] values of the y-axis.
z_range (Sequence[float] | None) – The [z_min, z_max, z_step] values of the z-axis.
x_length (float | None) – The length of the x-axis.
y_length (float | None) – The length of the y-axis.
z_length (float | None) – The length of the z-axis.
z_axis_config (dict | None) – Arguments to be passed to NumberLine that influence the z-axis.
z_normal (Sequence[float]) – The direction of the normal.
num_axis_pieces (int) – The number of pieces used to construct the axes.
light_source (Sequence[float]) – The direction of the light source.
depth – Currently non-functional.
gloss – Currently non-functional.
kwargs – Additional arguments to be passed to Axes.

Methods

`get_axis_labels`	Defines labels for the x_axis and y_axis of the graph.
`get_y_axis_label`	Generate a y-axis label.
`get_z_axis_label`	Generate a z-axis label.

Attributes

`animate`	Used to animate the application of any method of `self`.
`animation_overrides`
`color`
`depth`	The depth of the mobject.
`fill_color`	If there are multiple colors (for gradient) this returns the first one
`height`	The height of the mobject.
`n_points_per_curve`
`sheen_factor`
`stroke_color`
`width`	The width of the mobject.

get_axis_labels(x_label='x', y_label='y', z_label='z')[source]#

Defines labels for the x_axis and y_axis of the graph.

For increased control over the position of the labels, use get_x_axis_label(), get_y_axis_label(), and get_z_axis_label().

Parameters

x_label (float | str | Mobject) – The label for the x_axis. Defaults to MathTex for str and float inputs.
y_label (float | str | Mobject) – The label for the y_axis. Defaults to MathTex for str and float inputs.
z_label (float | str | Mobject) – The label for the z_axis. Defaults to MathTex for str and float inputs.

Returns

A VGroup of the labels for the x_axis, y_axis, and z_axis.

Return type

VGroup

Examples

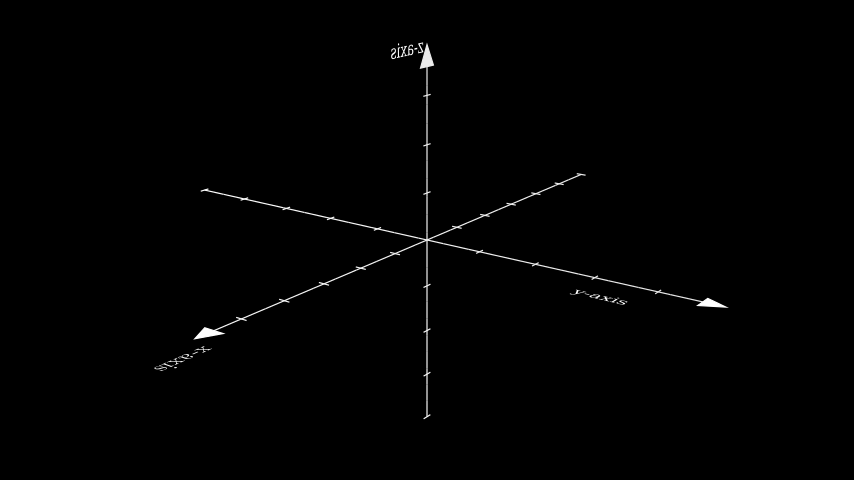

Example: GetAxisLabelsExample ¶

from manim import *

class GetAxisLabelsExample(ThreeDScene):
    def construct(self):
        self.set_camera_orientation(phi=2*PI/5, theta=PI/5)
        axes = ThreeDAxes()
        labels = axes.get_axis_labels(
            Tex("x-axis").scale(0.7), Text("y-axis").scale(0.45), Text("z-axis").scale(0.45)
        )
        self.add(axes, labels)

get_y_axis_label(label, edge=array([1., 1., 0.]), direction=array([1., 1., 0.]), buff=0.1, rotation=1.5707963267948966, rotation_axis=array([0., 0., 1.]), **kwargs)[source]#

Generate a y-axis label.

Parameters

label (float | str | Mobject) – The label. Defaults to MathTex for str and float inputs.
edge (Sequence[float]) – The edge of the y-axis to which the label will be added, by default UR.
direction (Sequence[float]) – Allows for further positioning of the label from an edge, by default UR.
buff (float) – The distance of the label from the line, by default SMALL_BUFF.
rotation – The angle at which to rotate the label, by default PI/2.
rotation_axis – The axis about which to rotate the label, by default OUT.

Returns

The positioned label.

Return type

Mobject

Examples

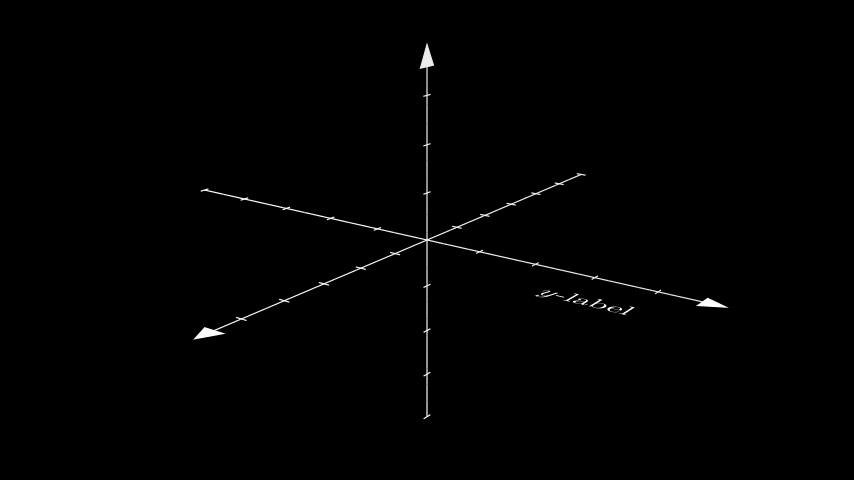

Example: GetYAxisLabelExample ¶

from manim import *

class GetYAxisLabelExample(ThreeDScene):
    def construct(self):
        ax = ThreeDAxes()
        lab = ax.get_y_axis_label(Tex("$y$-label"))
        self.set_camera_orientation(phi=2*PI/5, theta=PI/5)
        self.add(ax, lab)

get_z_axis_label(label, edge=array([0., 0., 1.]), direction=array([1., 0., 0.]), buff=0.1, rotation=1.5707963267948966, rotation_axis=array([1., 0., 0.]), **kwargs)[source]#

Generate a z-axis label.

Parameters

label (float | str | Mobject) – The label. Defaults to MathTex for str and float inputs.
edge (Sequence[float]) – The edge of the z-axis to which the label will be added, by default OUT.
direction (Sequence[float]) – Allows for further positioning of the label from an edge, by default RIGHT.
buff (float) – The distance of the label from the line, by default SMALL_BUFF.
rotation – The angle at which to rotate the label, by default PI/2.
rotation_axis – The axis about which to rotate the label, by default RIGHT.

Returns

The positioned label.

Return type

Mobject

Examples

Example: GetZAxisLabelExample ¶

from manim import *

class GetZAxisLabelExample(ThreeDScene):
    def construct(self):
        ax = ThreeDAxes()
        lab = ax.get_z_axis_label(Tex("$z$-label"))
        self.set_camera_orientation(phi=2*PI/5, theta=PI/5)
        self.add(ax, lab)
