LineJointType#

Qualified name: manim.constants.LineJointType

class LineJointType(value)[source]#

Bases: Enum

Collection of available line joint types.

See the example below for a visual illustration of the different joint types.

Examples

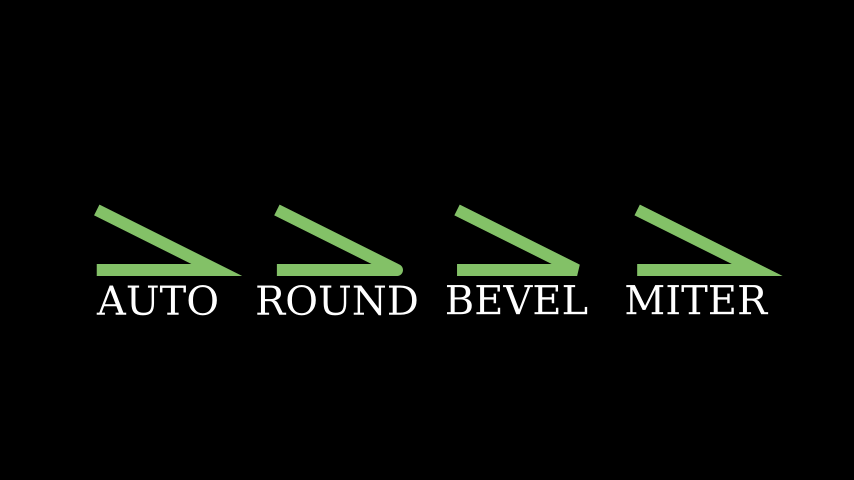

Example: LineJointVariants

../_images/LineJointVariants-1.png
from manim import *

class LineJointVariants(Scene):
    def construct(self):
        mob = VMobject(stroke_width=20, color=GREEN).set_points_as_corners([
            np.array([-2, 0, 0]),
            np.array([0, 0, 0]),
            np.array([-2, 1, 0]),
        ])
        lines = VGroup(*[mob.copy() for _ in range(len(LineJointType))])
        for line, joint_type in zip(lines, LineJointType):
            line.joint_type = joint_type

        lines.arrange(RIGHT, buff=1)
        self.add(lines)
        for line in lines:
            label = Text(line.joint_type.name).next_to(line, DOWN)
            self.add(label)

Attributes

AUTO

ROUND

BEVEL

MITER
