RegularPolygram#

Qualified name: manim.mobject.geometry.polygram.RegularPolygram

class RegularPolygram(num_vertices, *, density=2, radius=1, start_angle=None, **kwargs)[source]#

Bases: Polygram

A Polygram with regularly spaced vertices.

Parameters

num_vertices (int) – The number of vertices.
density (int) –
The density of the RegularPolygram.

Can be thought of as how many vertices to hop to draw a line between them. Every density-th vertex is connected.
radius (float) – The radius of the circle that the vertices are placed on.
start_angle (float | None) – The angle the vertices start at; the rotation of the RegularPolygram.
kwargs – Forwarded to the parent constructor.

Examples

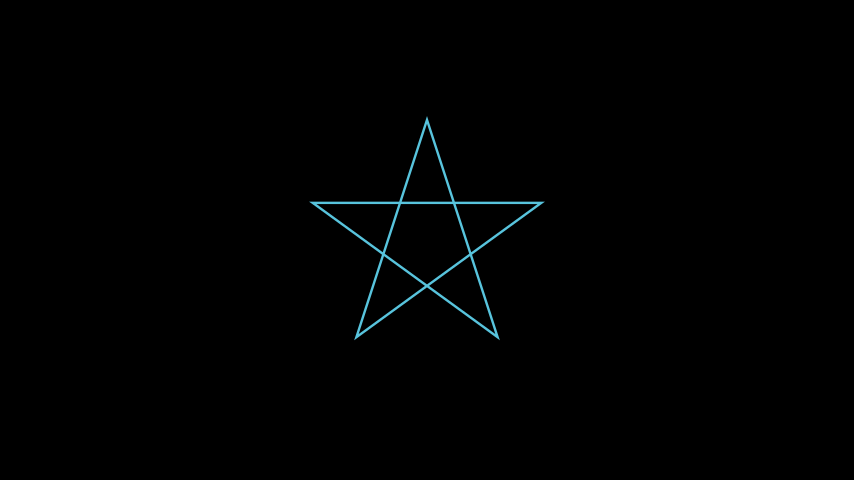

Example: RegularPolygramExample ¶

from manim import *

class RegularPolygramExample(Scene):
    def construct(self):
        pentagram = RegularPolygram(5, radius=2)
        self.add(pentagram)

Methods

Attributes

`animate`	Used to animate the application of any method of `self`.
`animation_overrides`
`color`
`depth`	The depth of the mobject.
`fill_color`	If there are multiple colors (for gradient) this returns the first one
`height`	The height of the mobject.
`n_points_per_curve`
`sheen_factor`
`stroke_color`
`width`	The width of the mobject.
