Elbow

Qualified name: manim.mobject.geometry.line.Elbow

class Elbow(width=0.2, angle=0, **kwargs)

Bases: VMobject

Two lines that create a right angle about each other: L-shape.

Parameters

• width (float) – The length of the elbow’s sides.

• angle (float) – The rotation of the elbow.

• kwargs – Additional arguments to be passed to VMobject

• seealso:: (..) – RightAngle

Examples

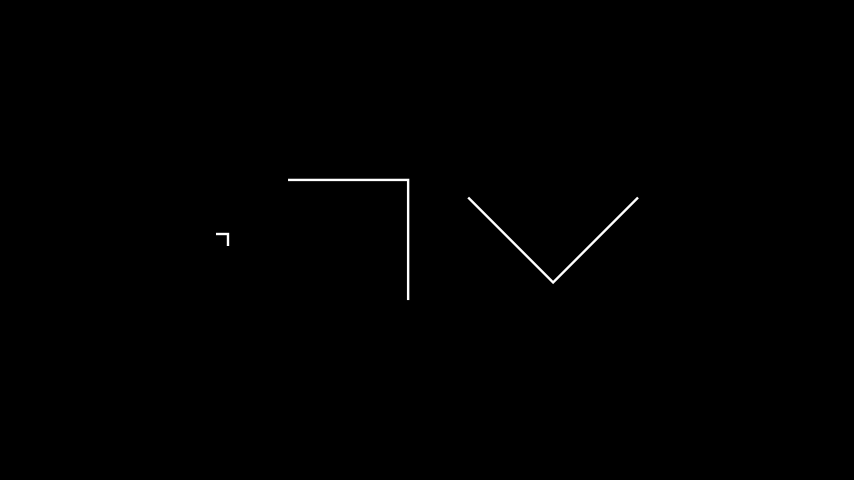

Example: ElbowExample

from manim import *

class ElbowExample(Scene):
    def construct(self):
        elbow_1 = Elbow()
        elbow_2 = Elbow(width=2.0)
        elbow_3 = Elbow(width=2.0, angle=5*PI/4)

        elbow_group = Group(elbow_1, elbow_2, elbow_3).arrange(buff=1)
        self.add(elbow_group)

Methods

Attributes

animate	Used to animate the application of any method of self.
animation_overrides
color
depth	The depth of the mobject.
fill_color	If there are multiple colors (for gradient) this returns the first one
height	The height of the mobject.
n_points_per_curve
sheen_factor
stroke_color
width	The width of the mobject.
