Arc#

Qualified name: manim.mobject.geometry.arc.Arc

class Arc(radius=1.0, start_angle=0, angle=1.5707963267948966, num_components=9, arc_center=array([0., 0., 0.]), **kwargs)[source]#

A circular arc.

Examples

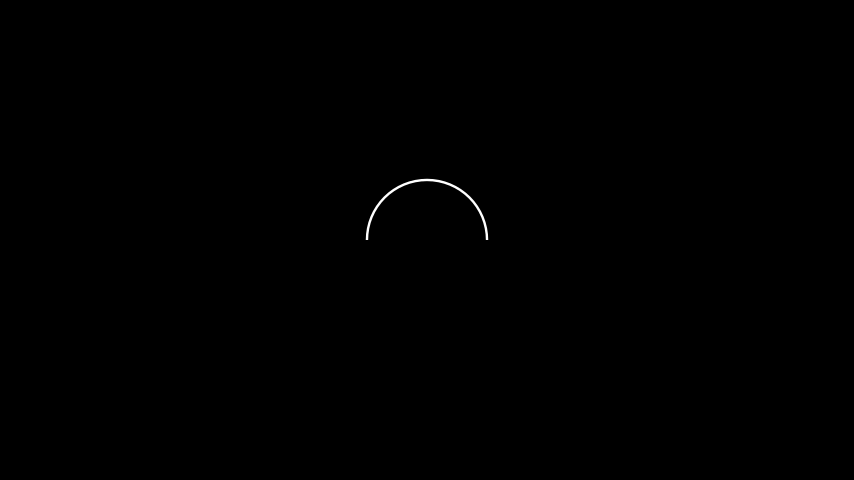

A simple arc of angle Pi.

Example: ArcExample ¶

from manim import *

class ArcExample(Scene):
    def construct(self):
        self.add(Arc(angle=PI))

Methods

`generate_points`	Initializes `points` and therefore the shape.
`get_arc_center`	Looks at the normals to the first two anchors, and finds their intersection points
`init_points`
`move_arc_center_to`
`stop_angle`

Attributes

`animate`	Used to animate the application of any method of `self`.
`animation_overrides`
`color`
`depth`	The depth of the mobject.
`fill_color`	If there are multiple colors (for gradient) this returns the first one
`height`	The height of the mobject.
`n_points_per_curve`
`sheen_factor`
`stroke_color`
`width`	The width of the mobject.

generate_points()[source]#

Initializes points and therefore the shape.

Gets called upon creation. This is an empty method that can be implemented by subclasses.

get_arc_center(warning=True)[source]#: Looks at the normals to the first two anchors, and finds their intersection points
