RoundedRectangle#

Qualified name: manim.mobject.geometry.polygram.RoundedRectangle

class RoundedRectangle(corner_radius=0.5, **kwargs)[source]#

Bases: Rectangle

A rectangle with rounded corners.

Parameters

corner_radius (float | list[float]) – The curvature of the corners of the rectangle.
kwargs – Additional arguments to be passed to Rectangle

Examples

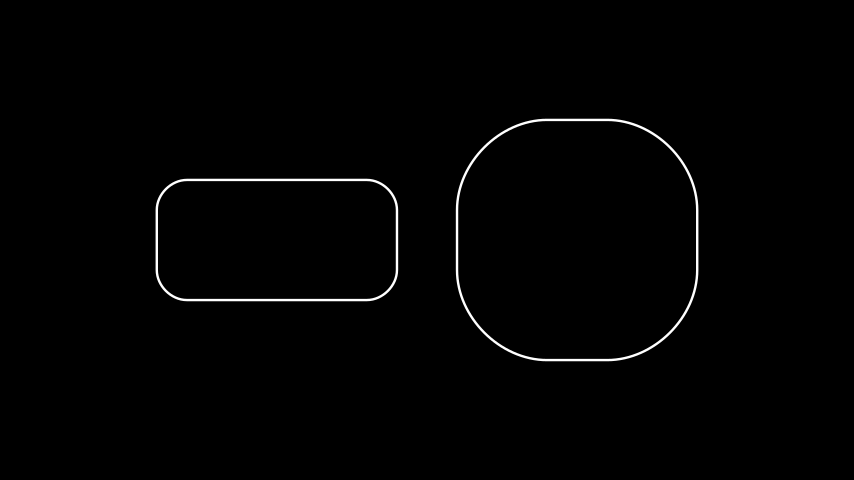

Example: RoundedRectangleExample ¶

../_images/RoundedRectangleExample-1.png

from manim import *

class RoundedRectangleExample(Scene):
    def construct(self):
        rect_1 = RoundedRectangle(corner_radius=0.5)
        rect_2 = RoundedRectangle(corner_radius=1.5, height=4.0, width=4.0)

        rect_group = Group(rect_1, rect_2).arrange(buff=1)
        self.add(rect_group)

Methods

Attributes

`animate`	Used to animate the application of any method of `self`.
`animation_overrides`
`color`
`depth`	The depth of the mobject.
`fill_color`	If there are multiple colors (for gradient) this returns the first one
`height`	The height of the mobject.
`n_points_per_curve`
`sheen_factor`
`stroke_color`
`width`	The width of the mobject.
