NumberPlane

Qualified name: manim.mobject.graphing.coordinate\_systems.NumberPlane

class NumberPlane(x_range=(- 7.111111111111111, 7.111111111111111, 1), y_range=(- 4.0, 4.0, 1), x_length=None, y_length=None, background_line_style=None, faded_line_style=None, faded_line_ratio=1, make_smooth_after_applying_functions=True, **kwargs)

Bases: Axes

Creates a cartesian plane with background lines.

Parameters

• x_range (Sequence[float] | None) – The [x_min, x_max, x_step] values of the plane in the horizontal direction.

• y_range (Sequence[float] | None) – The [y_min, y_max, y_step] values of the plane in the vertical direction.

• x_length (float | None) – The width of the plane.

• y_length (float | None) – The height of the plane.

• background_line_style (dict | None) – Arguments that influence the construction of the background lines of the plane.

• faded_line_style (dict | None) – Similar to background_line_style, affects the construction of the scene’s background lines.

• faded_line_ratio (int) – Determines the number of boxes within the background lines: 2 = 4 boxes, 3 = 9 boxes.

• make_smooth_after_applying_functions (bool) – Currently non-functional.

• kwargs – Additional arguments to be passed to Axes.

Note

If x_length or y_length are not defined, they are automatically calculated such that one unit on each axis is one Manim unit long.

Examples

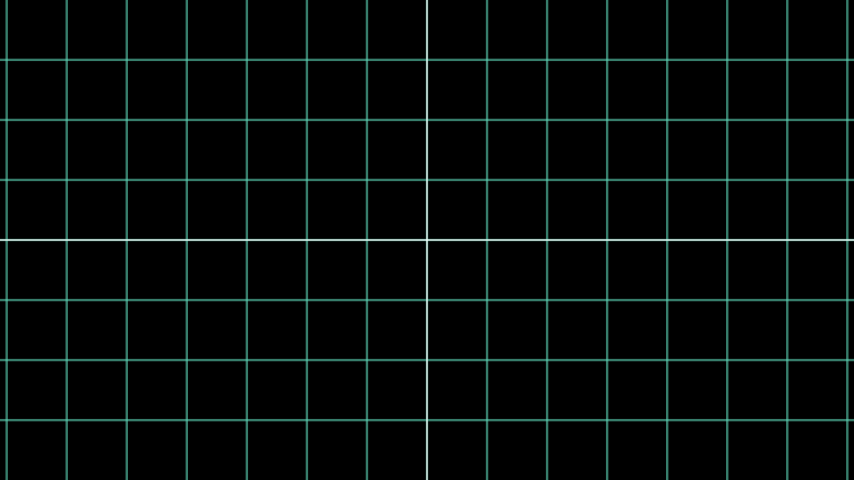

Example: NumberPlaneExample

from manim import *

class NumberPlaneExample(Scene):
    def construct(self):
        number_plane = NumberPlane(
            background_line_style={
                "stroke_color": TEAL,
                "stroke_width": 4,
                "stroke_opacity": 0.6
            }
        )
        self.add(number_plane)

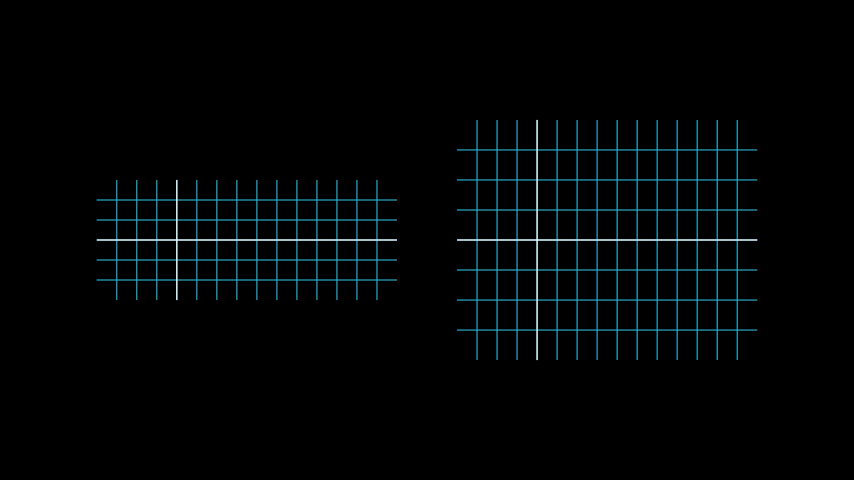

Example: NumberPlaneScaled

from manim import *

class NumberPlaneScaled(Scene):
    def construct(self):
        number_plane = NumberPlane(
            x_range=(-4, 11, 1),
            y_range=(-3, 3, 1),
            x_length=5,
            y_length=2,
        ).move_to(LEFT*3)

        number_plane_scaled_y = NumberPlane(
            x_range=(-4, 11, 1),
            x_length=5,
            y_length=4,
        ).move_to(RIGHT*3)

        self.add(number_plane)
        self.add(number_plane_scaled_y)

Methods

get_vector
prepare_for_nonlinear_transform

Attributes

animate	Used to animate the application of any method of self.
animation_overrides
color
depth	The depth of the mobject.
fill_color	If there are multiple colors (for gradient) this returns the first one
height	The height of the mobject.
n_points_per_curve
sheen_factor
stroke_color
width	The width of the mobject.
