Arrow3D#

Qualified name: manim.mobject.three\_d.three\_dimensions.Arrow3D

class Arrow3D(start=array([- 1., 0., 0.]), end=array([1., 0., 0.]), thickness=0.02, height=0.3, base_radius=0.08, color='#FFFFFF', **kwargs)[source]#

Bases: Line3D

An arrow made out of a cylindrical line and a conical tip.

Parameters

start (np.ndarray) – The start position of the arrow.
end (np.ndarray) – The end position of the arrow.
thickness (float) – The thickness of the arrow.
height (float) – The height of the conical tip.
base_radius (float) – The base radius of the conical tip.
color (Color) – The color of the arrow.

Examples

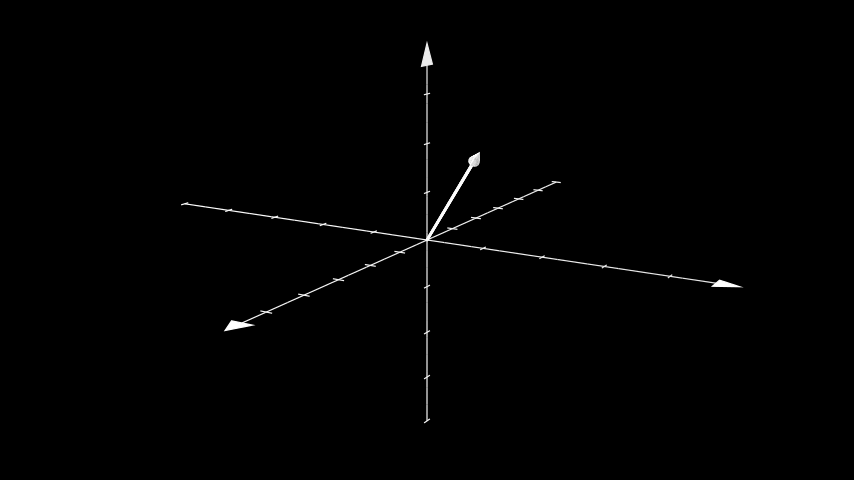

Example: ExampleArrow3D ¶

from manim import *

class ExampleArrow3D(ThreeDScene):
    def construct(self):
        axes = ThreeDAxes()
        arrow = Arrow3D(
            start=np.array([0, 0, 0]),
            end=np.array([2, 2, 2]),
            resolution=8
        )
        self.set_camera_orientation(phi=75 * DEGREES, theta=30 * DEGREES)
        self.add(axes, arrow)

Methods

Attributes

`animate`	Used to animate the application of any method of `self`.
`animation_overrides`
`color`
`depth`	The depth of the mobject.
`fill_color`	If there are multiple colors (for gradient) this returns the first one
`height`	The height of the mobject.
`n_points_per_curve`
`sheen_factor`
`stroke_color`
`width`	The width of the mobject.
