FunctionGraph

Qualified name: manim.mobject.graphing.functions.FunctionGraph

class FunctionGraph(function, x_range=None, color='#FFFF00', **kwargs)

Bases: ParametricFunction

A ParametricFunction that spans the length of the scene by default.

Examples

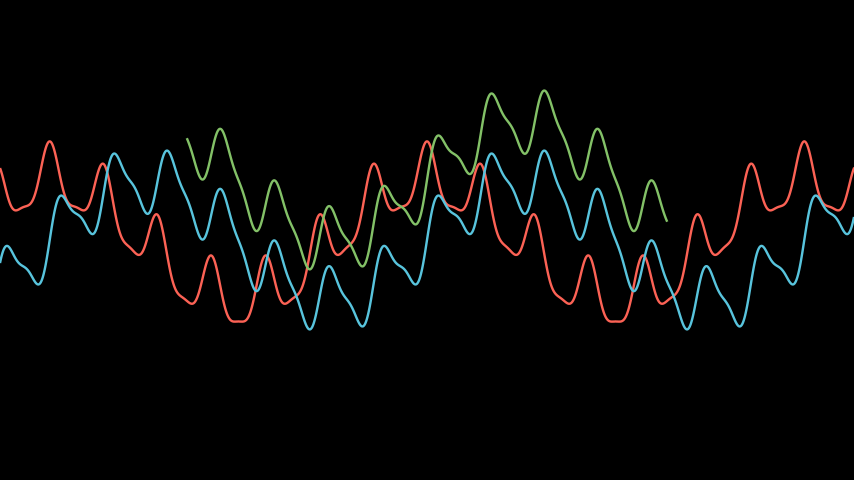

Example: ExampleFunctionGraph

from manim import *

class ExampleFunctionGraph(Scene):
    def construct(self):
        cos_func = FunctionGraph(
            lambda t: np.cos(t) + 0.5 * np.cos(7 * t) + (1 / 7) * np.cos(14 * t),
            color=RED,
        )

        sin_func_1 = FunctionGraph(
            lambda t: np.sin(t) + 0.5 * np.sin(7 * t) + (1 / 7) * np.sin(14 * t),
            color=BLUE,
        )

        sin_func_2 = FunctionGraph(
            lambda t: np.sin(t) + 0.5 * np.sin(7 * t) + (1 / 7) * np.sin(14 * t),
            x_range=[-4, 4],
            color=GREEN,
        ).move_to([0, 1, 0])

        self.add(cos_func, sin_func_1, sin_func_2)

Methods

get_function
get_point_from_function

Attributes

animate	Used to animate the application of any method of self.
animation_overrides
color
depth	The depth of the mobject.
fill_color	If there are multiple colors (for gradient) this returns the first one
height	The height of the mobject.
n_points_per_curve
sheen_factor
stroke_color
width	The width of the mobject.
