SampleSpace#

Qualified name: manim.mobject.graphing.probability.SampleSpace

class SampleSpace(height=3, width=3, fill_color='#444444', fill_opacity=1, stroke_width=0.5, stroke_color='#BBBBBB', default_label_scale_val=1)[source]#

Bases: Rectangle

Examples

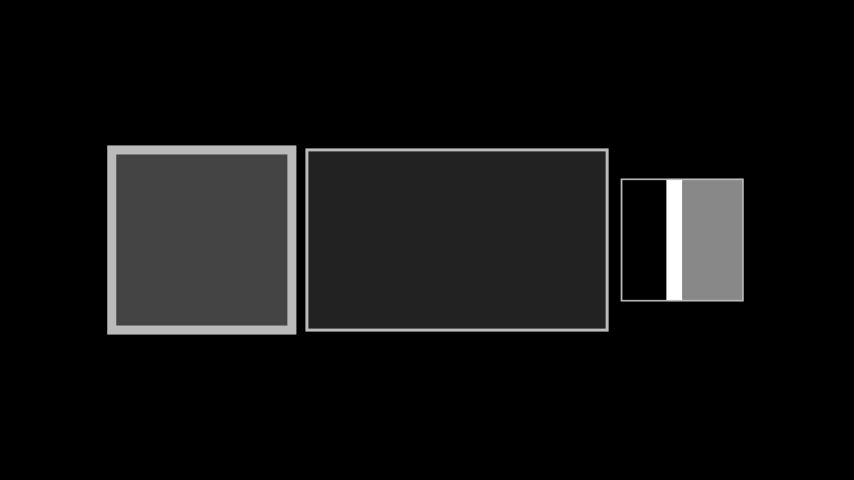

Example: ExampleSampleSpace ¶

from manim import *

class ExampleSampleSpace(Scene):
    def construct(self):
        poly1 = SampleSpace(stroke_width=15, fill_opacity=1)
        poly2 = SampleSpace(width=5, height=3, stroke_width=5, fill_opacity=0.5)
        poly3 = SampleSpace(width=2, height=2, stroke_width=5, fill_opacity=0.1)
        poly3.divide_vertically(p_list=np.array([0.37, 0.13, 0.5]), colors=[BLACK, WHITE, GRAY], vect=RIGHT)
        poly_group = VGroup(poly1, poly2, poly3).arrange()
        self.add(poly_group)

Methods

`add_braces_and_labels`
`add_label`
`add_title`
`complete_p_list`
`divide_horizontally`
`divide_vertically`
`get_bottom_braces_and_labels`
`get_division_along_dimension`
`get_horizontal_division`
`get_side_braces_and_labels`
`get_subdivision_braces_and_labels`
`get_top_braces_and_labels`
`get_vertical_division`

Attributes

`animate`	Used to animate the application of any method of `self`.
`animation_overrides`
`color`
`depth`	The depth of the mobject.
`fill_color`	If there are multiple colors (for gradient) this returns the first one
`height`	The height of the mobject.
`n_points_per_curve`
`sheen_factor`
`stroke_color`
`width`	The width of the mobject.
