ImplicitFunction#

Qualified name: manim.mobject.graphing.functions.ImplicitFunction

class ImplicitFunction(func, x_range=None, y_range=None, min_depth=5, max_quads=1500, use_smoothing=True, **kwargs)[source]#

Bases: VMobject

An implicit function.

Parameters

func (Callable[[float, float], float]) – The implicit function in the form f(x, y) = 0.
x_range (Sequence[float] | None) – The x min and max of the function.
y_range (Sequence[float] | None) – The y min and max of the function.
min_depth (int) – The minimum depth of the function to calculate.
max_quads (int) – The maximum number of quads to use.
use_smoothing (bool) – Whether or not to smoothen the curves.
kwargs – Additional parameters to pass into VMobject

Note

A small min_depth \(d\) means that some small details might be ignored if they don’t cross an edge of one of the \(4^d\) uniform quads.

The value of max_quads strongly corresponds to the quality of the curve, but a higher number of quads may take longer to render.

Examples

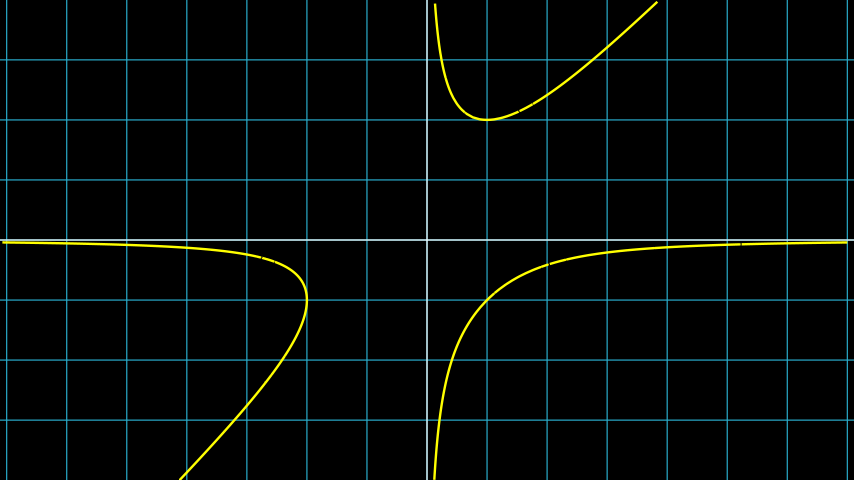

Example: ImplicitFunctionExample ¶

../_images/ImplicitFunctionExample-1.png

from manim import *

class ImplicitFunctionExample(Scene):
    def construct(self):
        graph = ImplicitFunction(
            lambda x, y: x * y ** 2 - x ** 2 * y - 2,
            color=YELLOW
        )
        self.add(NumberPlane(), graph)

Methods

`generate_points`	Initializes `points` and therefore the shape.
`init_points`	Initializes `points` and therefore the shape.

Attributes

`animate`	Used to animate the application of any method of `self`.
`animation_overrides`
`color`
`depth`	The depth of the mobject.
`fill_color`	If there are multiple colors (for gradient) this returns the first one
`height`	The height of the mobject.
`n_points_per_curve`
`sheen_factor`
`stroke_color`
`width`	The width of the mobject.

generate_points()[source]#

Initializes points and therefore the shape.

Gets called upon creation. This is an empty method that can be implemented by subclasses.

init_points()#

Initializes points and therefore the shape.

Gets called upon creation. This is an empty method that can be implemented by subclasses.
