ArcBrace

Qualified name: manim.mobject.svg.brace.ArcBrace

class ArcBrace(arc=Arc, direction=array([1., 0., 0.]), **kwargs)

Bases: Brace

Creates a Brace that wraps around an Arc.

The direction parameter allows the brace to be applied from outside or inside the arc.

Warning

The ArcBrace is smaller for arcs with smaller radii.

Note

The ArcBrace is initially a vertical Brace defined by the length of the Arc, but is scaled down to match the start and end angles. An exponential function is then applied after it is shifted based on the radius of the arc.

The scaling effect is not applied for arcs with radii smaller than 1 to prevent over-scaling.

Parameters

• arc (Arc) – The Arc that wraps around the Brace mobject.

• direction (Sequence[float]) – The direction from which the brace faces the arc. LEFT for inside the arc, and RIGHT for the outside.

Example

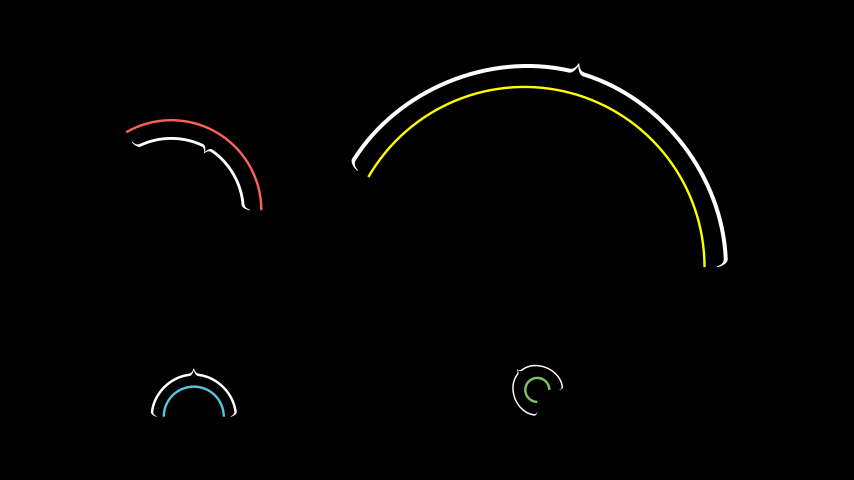

Example: ArcBraceExample

from manim import *

class ArcBraceExample(Scene):
    def construct(self):
        arc_1 = Arc(radius=1.5,start_angle=0,angle=2*PI/3).set_color(RED)
        brace_1 = ArcBrace(arc_1,LEFT)
        group_1 = VGroup(arc_1,brace_1)

        arc_2 = Arc(radius=3,start_angle=0,angle=5*PI/6).set_color(YELLOW)
        brace_2 = ArcBrace(arc_2)
        group_2 = VGroup(arc_2,brace_2)

        arc_3 = Arc(radius=0.5,start_angle=-0,angle=PI).set_color(BLUE)
        brace_3 = ArcBrace(arc_3)
        group_3 = VGroup(arc_3,brace_3)

        arc_4 = Arc(radius=0.2,start_angle=0,angle=3*PI/2).set_color(GREEN)
        brace_4 = ArcBrace(arc_4)
        group_4 = VGroup(arc_4,brace_4)

        arc_group = VGroup(group_1, group_2, group_3, group_4).arrange_in_grid(buff=1.5)
        self.add(arc_group.center())

References: Arc

Methods

Attributes

animate	Used to animate the application of any method of self.
animation_overrides
color
depth	The depth of the mobject.
fill_color	If there are multiple colors (for gradient) this returns the first one
height	The height of the mobject.
n_points_per_curve
sheen_factor
stroke_color
width	The width of the mobject.
