MathTable#

Qualified name: manim.mobject.table.MathTable

class MathTable(table, element_to_mobject=<class 'manim.mobject.text.tex_mobject.MathTex'>, **kwargs)[source]#

Bases: Table

A specialized Table mobject for use with LaTeX.

Examples

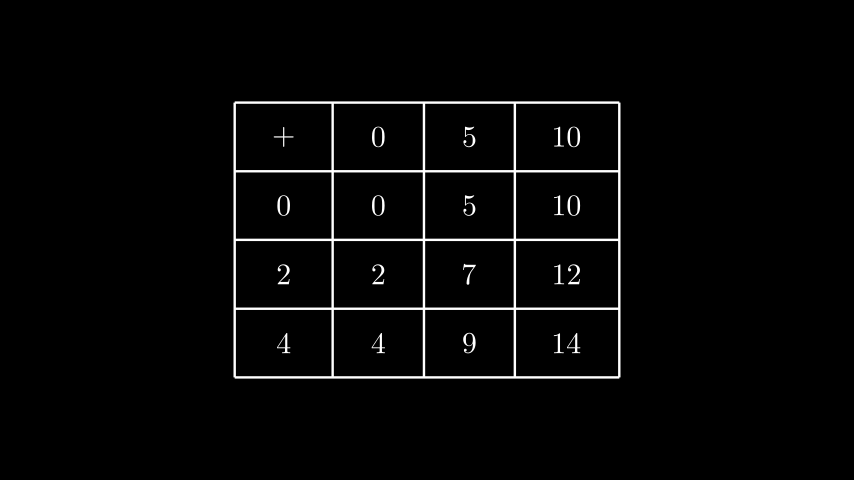

Example: MathTableExample ¶

from manim import *

class MathTableExample(Scene):
    def construct(self):
        t0 = MathTable(
            [["+", 0, 5, 10],
            [0, 0, 5, 10],
            [2, 2, 7, 12],
            [4, 4, 9, 14]],
            include_outer_lines=True)
        self.add(t0)

Special case of Table with element_to_mobject set to MathTex. Every entry in table is set in a Latex align environment.

Parameters

table (Iterable[Iterable[float | str]]) – A 2d array or list of lists. Content of the table have to be valid input for MathTex.
element_to_mobject (Callable[[float | str], VMobject]) – The Mobject class applied to the table entries. Set as MathTex.
kwargs – Additional arguments to be passed to Table.

Methods

Attributes

`animate`	Used to animate the application of any method of `self`.
`animation_overrides`
`color`
`depth`	The depth of the mobject.
`fill_color`	If there are multiple colors (for gradient) this returns the first one
`height`	The height of the mobject.
`n_points_per_curve`
`sheen_factor`
`stroke_color`
`width`	The width of the mobject.
