Ellipse#

Qualified name: manim.mobject.geometry.arc.Ellipse

class Ellipse(width=2, height=1, **kwargs)[source]#

Bases: Circle

A circular shape; oval, circle.

Parameters

width (float) – The horizontal width of the ellipse.
height (float) – The vertical height of the ellipse.
kwargs – Additional arguments to be passed to Circle.

Examples

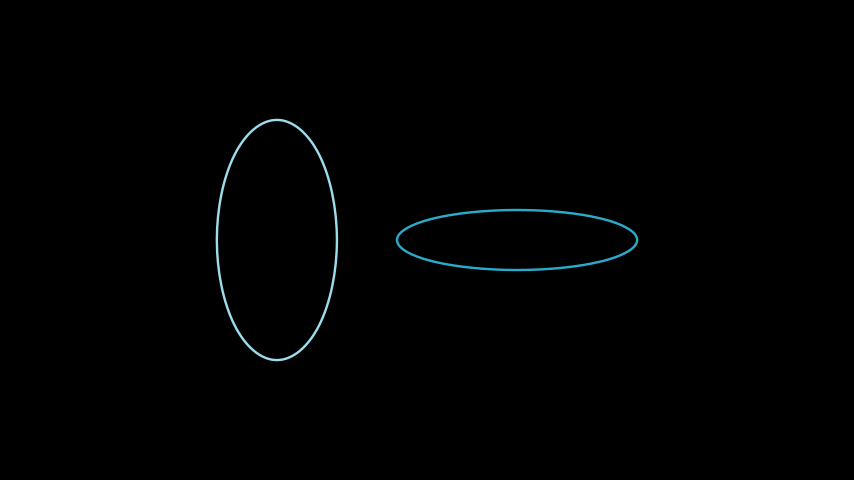

Example: EllipseExample ¶

from manim import *

class EllipseExample(Scene):
    def construct(self):
        ellipse_1 = Ellipse(width=2.0, height=4.0, color=BLUE_B)
        ellipse_2 = Ellipse(width=4.0, height=1.0, color=BLUE_D)
        ellipse_group = Group(ellipse_1,ellipse_2).arrange(buff=1)
        self.add(ellipse_group)

Methods

Attributes

`animate`	Used to animate the application of any method of `self`.
`animation_overrides`
`color`
`depth`	The depth of the mobject.
`fill_color`	If there are multiple colors (for gradient) this returns the first one
`height`	The height of the mobject.
`n_points_per_curve`
`sheen_factor`
`stroke_color`
`width`	The width of the mobject.
