arc

Mobjects that are curved.

Examples

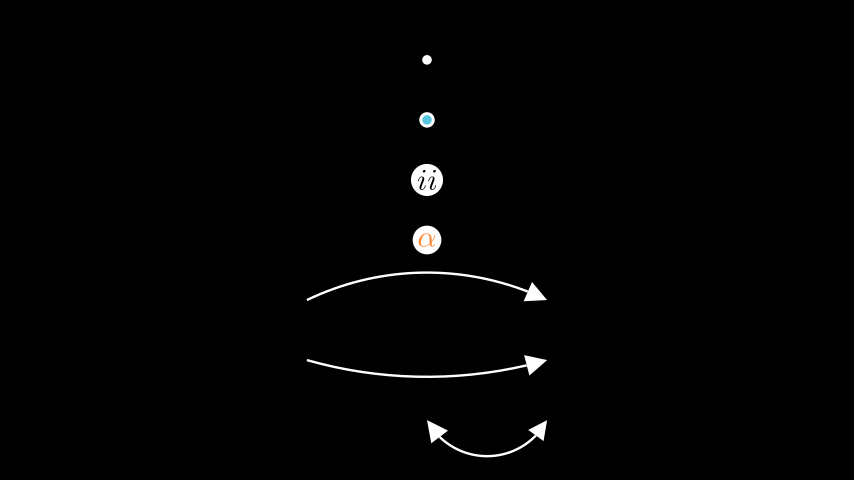

Example: UsefulAnnotations

from manim import *

class UsefulAnnotations(Scene):
    def construct(self):
        m0 = Dot()
        m1 = AnnotationDot()
        m2 = LabeledDot("ii")
        m3 = LabeledDot(MathTex(r"\alpha").set_color(ORANGE))
        m4 = CurvedArrow(2*LEFT, 2*RIGHT, radius= -5)
        m5 = CurvedArrow(2*LEFT, 2*RIGHT, radius= 8)
        m6 = CurvedDoubleArrow(ORIGIN, 2*RIGHT)

        self.add(m0, m1, m2, m3, m4, m5, m6)
        for i, mobj in enumerate(self.mobjects):
            mobj.shift(DOWN * (i-3))

Classes

AnnotationDot	A dot with bigger radius and bold stroke to annotate scenes.
AnnularSector	param inner_radius The inside radius of the Annular Sector.
Annulus	Region between two concentric Circles.
Arc	A circular arc.
ArcBetweenPoints	Inherits from Arc and additionally takes 2 points between which the arc is spanned.
ArcPolygon	A generalized polygon allowing for points to be connected with arcs.
ArcPolygonFromArcs	A generalized polygon allowing for points to be connected with arcs.
Circle	A circle.
CubicBezier	Example
CurvedArrow
CurvedDoubleArrow
Dot	A circle with a very small radius.
Ellipse	A circular shape; oval, circle.
LabeledDot	A Dot containing a label in its center.
Sector	Examples
TipableVMobject	Meant for shared functionality between Arc and Line.
