Difference#

Qualified name: manim.mobject.geometry.boolean\_ops.Difference

class Difference(subject, clip, **kwargs)[source]#

Bases: _BooleanOps

Subtracts one VMobject from another one.

Parameters

subject – The 1st VMobject.
clip – The 2nd VMobject

Example

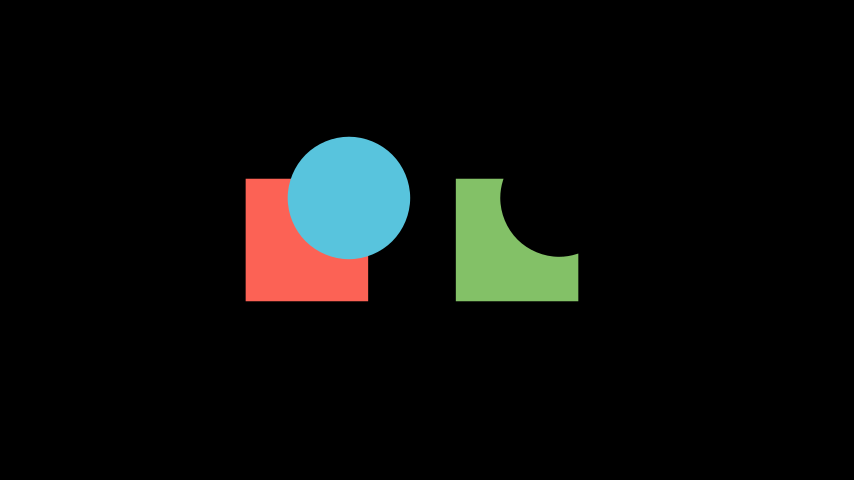

Example: DifferenceExample ¶

from manim import *

class DifferenceExample(Scene):
    def construct(self):
        sq = Square(color=RED, fill_opacity=1)
        sq.move_to([-2, 0, 0])
        cr = Circle(color=BLUE, fill_opacity=1)
        cr.move_to([-1.3, 0.7, 0])
        un = Difference(sq, cr, color=GREEN, fill_opacity=1)
        un.move_to([1.5, 0, 0])
        self.add(sq, cr, un)

Methods

Attributes

`animate`	Used to animate the application of any method of `self`.
`animation_overrides`
`color`
`depth`	The depth of the mobject.
`fill_color`	If there are multiple colors (for gradient) this returns the first one
`height`	The height of the mobject.
`n_points_per_curve`
`sheen_factor`
`stroke_color`
`width`	The width of the mobject.
