Octahedron#

Qualified name: manim.mobject.three\_d.polyhedra.Octahedron

class Octahedron(edge_length=1, **kwargs)[source]#

Bases: Polyhedron

An octahedron, one of the five platonic solids. It has 8 faces, 12 edges and 6 vertices.

Parameters: edge_length (float) – The length of an edge between any two vertices.

Examples

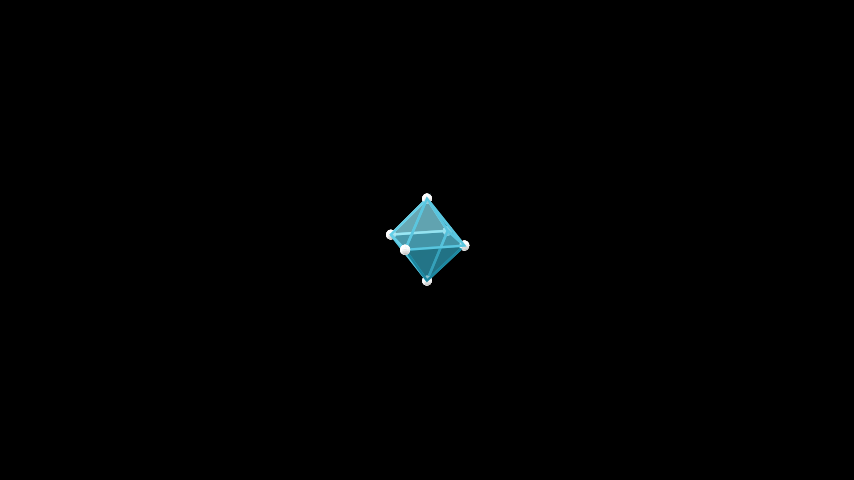

Example: OctahedronScene ¶

from manim import *

class OctahedronScene(ThreeDScene):
    def construct(self):
        self.set_camera_orientation(phi=75 * DEGREES, theta=30 * DEGREES)
        obj = Octahedron()
        self.add(obj)

Methods

Attributes

`animate`	Used to animate the application of any method of `self`.
`animation_overrides`
`color`
`depth`	The depth of the mobject.
`fill_color`	If there are multiple colors (for gradient) this returns the first one
`height`	The height of the mobject.
`n_points_per_curve`
`sheen_factor`
`stroke_color`
`width`	The width of the mobject.
