Cube

Qualified name: manim.mobject.three\_d.three\_dimensions.Cube

class Cube(side_length=2, fill_opacity=0.75, fill_color='#58C4DD', stroke_width=0, **kwargs)

Bases: VGroup

A three-dimensional cube.

Parameters

• side_length (float) – Length of each side of the Cube.

• fill_opacity (float) – The opacity of the Cube, from 0 being fully transparent to 1 being fully opaque. Defaults to 0.75.

• fill_color (Color) – The color of the Cube.

• stroke_width (float) – The width of the stroke surrounding each face of the Cube.

Examples

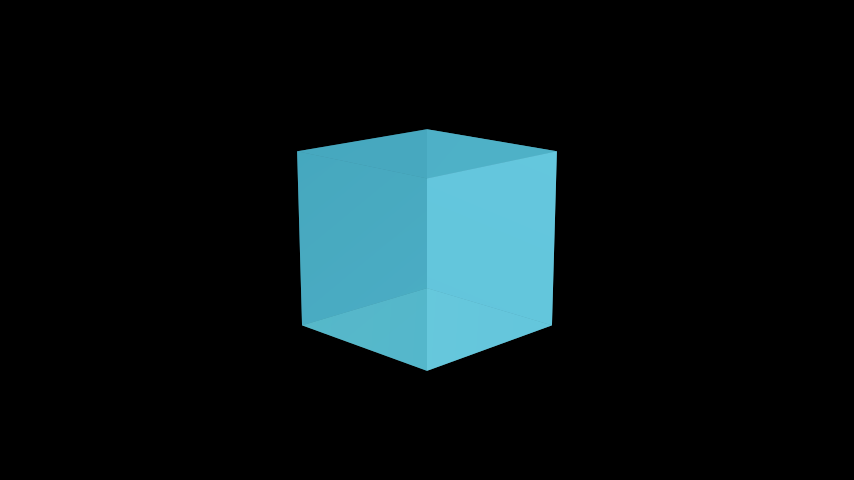

Example: CubeExample

from manim import *

class CubeExample(ThreeDScene):
    def construct(self):
        self.set_camera_orientation(phi=75*DEGREES, theta=-45*DEGREES)

        axes = ThreeDAxes()
        cube = Cube(side_length=3, fill_opacity=0.7, fill_color=BLUE)
        self.add(cube)

Methods

generate_points	Creates the sides of the Cube.
init_points	Creates the sides of the Cube.

Attributes

animate	Used to animate the application of any method of self.
animation_overrides
color
depth	The depth of the mobject.
fill_color	If there are multiple colors (for gradient) this returns the first one
height	The height of the mobject.
n_points_per_curve
sheen_factor
stroke_color
width	The width of the mobject.

generate_points()

Creates the sides of the Cube.

Return type

None

init_points()

Creates the sides of the Cube.

Return type

None
