Dot#

Qualified name: manim.mobject.geometry.arc.Dot

class Dot(point=array([0., 0., 0.]), radius=0.08, stroke_width=0, fill_opacity=1.0, color='#FFFFFF', **kwargs)[source]#

Bases: Circle

A circle with a very small radius.

Parameters

point (list | np.ndarray) – The location of the dot.
radius (float) – The radius of the dot.
stroke_width (float) – The thickness of the outline of the dot.
fill_opacity (float) – The opacity of the dot’s fill_colour
color (Color | str) – The color of the dot.
kwargs – Additional arguments to be passed to Circle

Examples

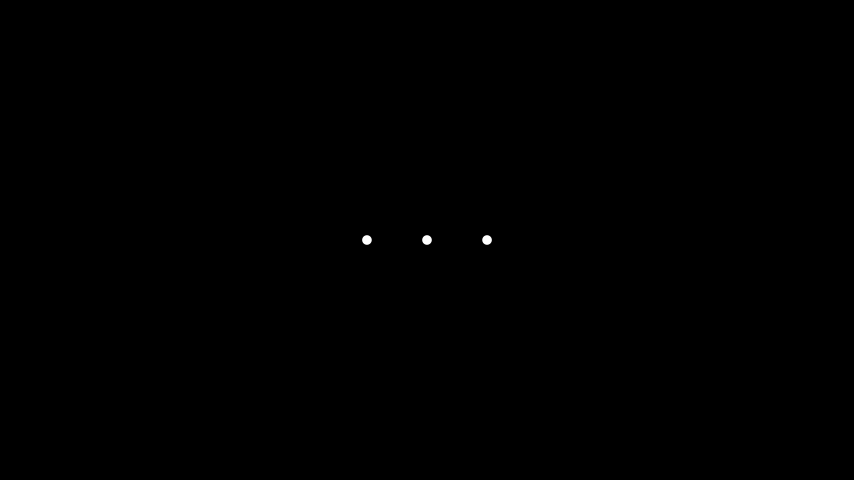

Example: DotExample ¶

from manim import *

class DotExample(Scene):
    def construct(self):
        dot1 = Dot(point=LEFT, radius=0.08)
        dot2 = Dot(point=ORIGIN)
        dot3 = Dot(point=RIGHT)
        self.add(dot1,dot2,dot3)

Methods

Attributes

`animate`	Used to animate the application of any method of `self`.
`animation_overrides`
`color`
`depth`	The depth of the mobject.
`fill_color`	If there are multiple colors (for gradient) this returns the first one
`height`	The height of the mobject.
`n_points_per_curve`
`sheen_factor`
`stroke_color`
`width`	The width of the mobject.
